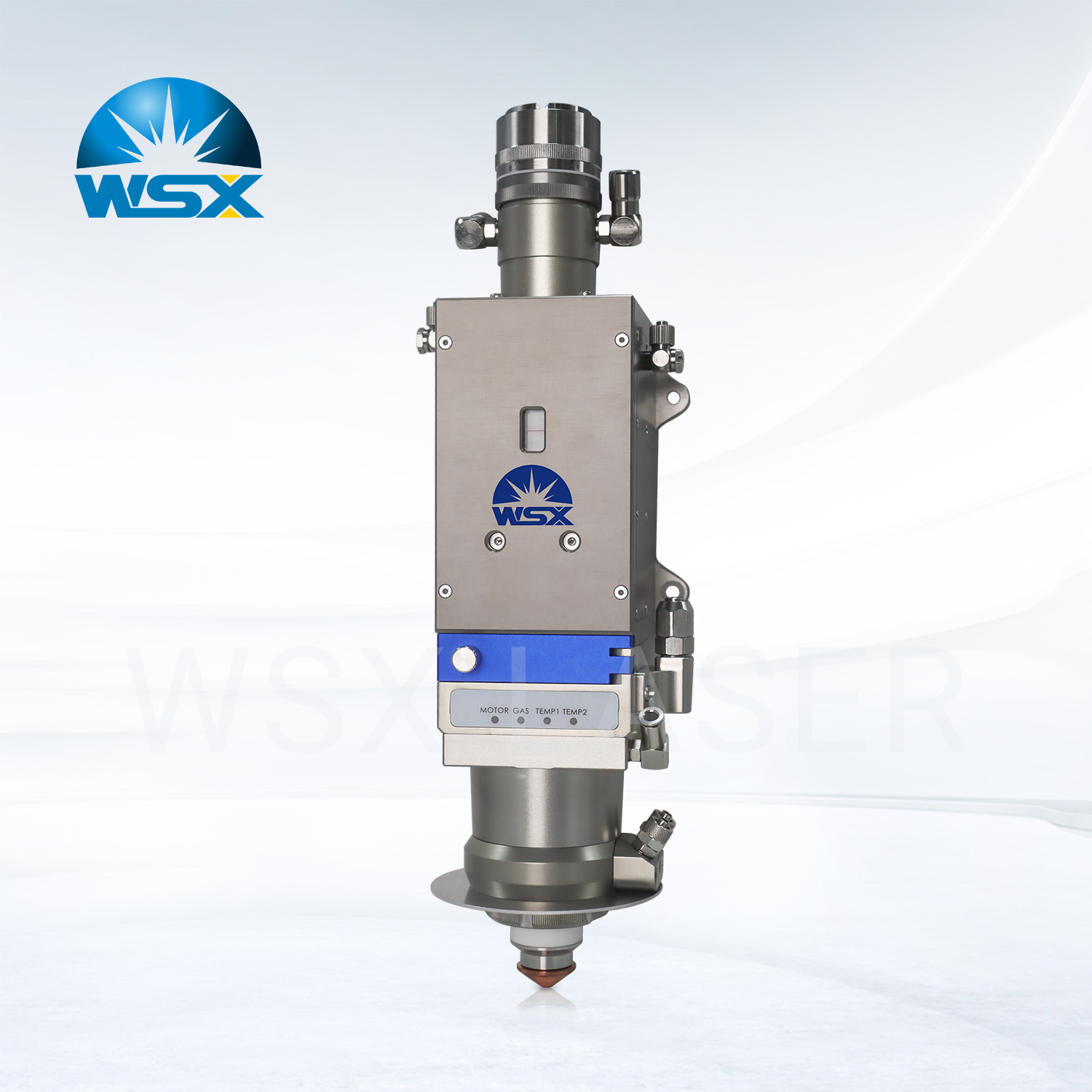

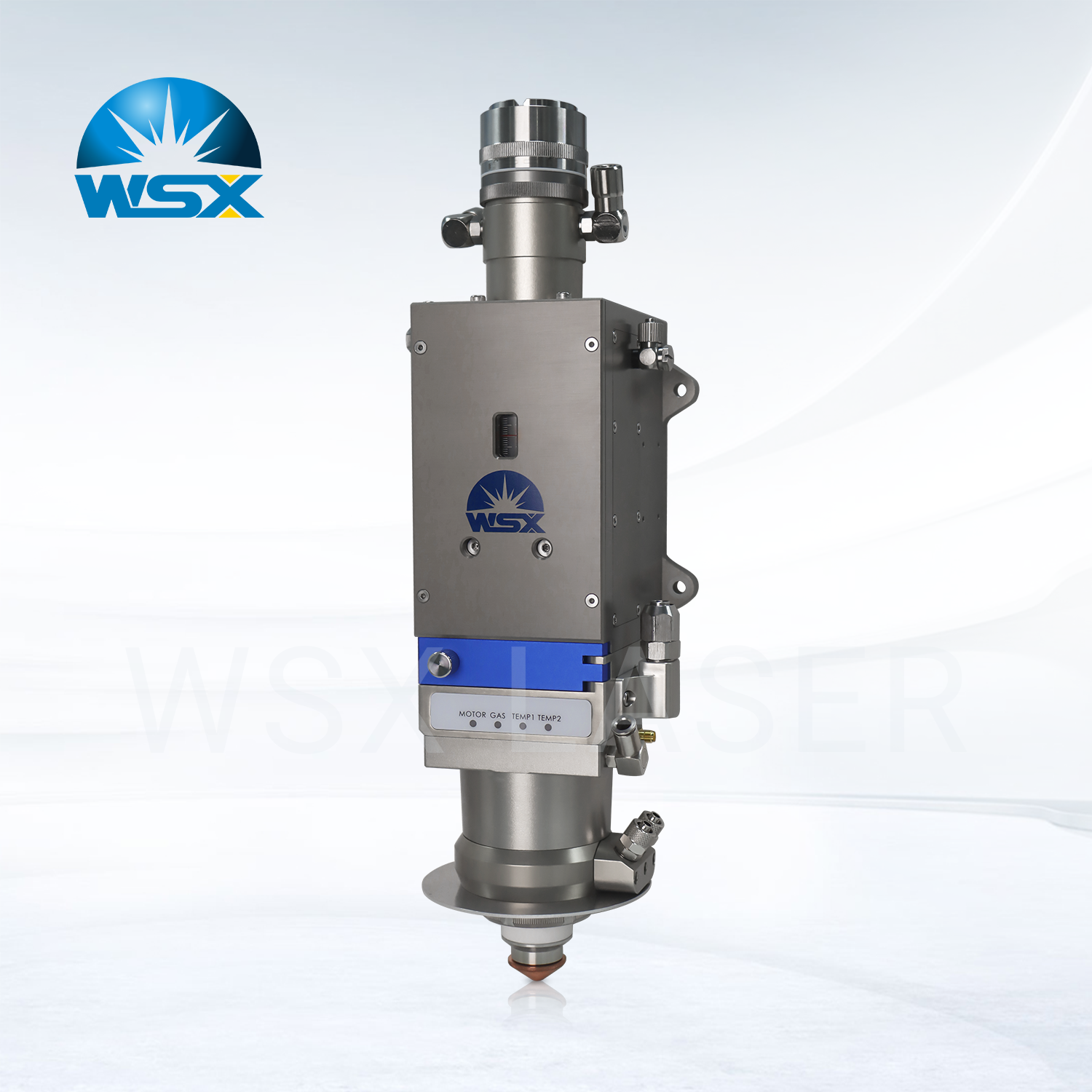

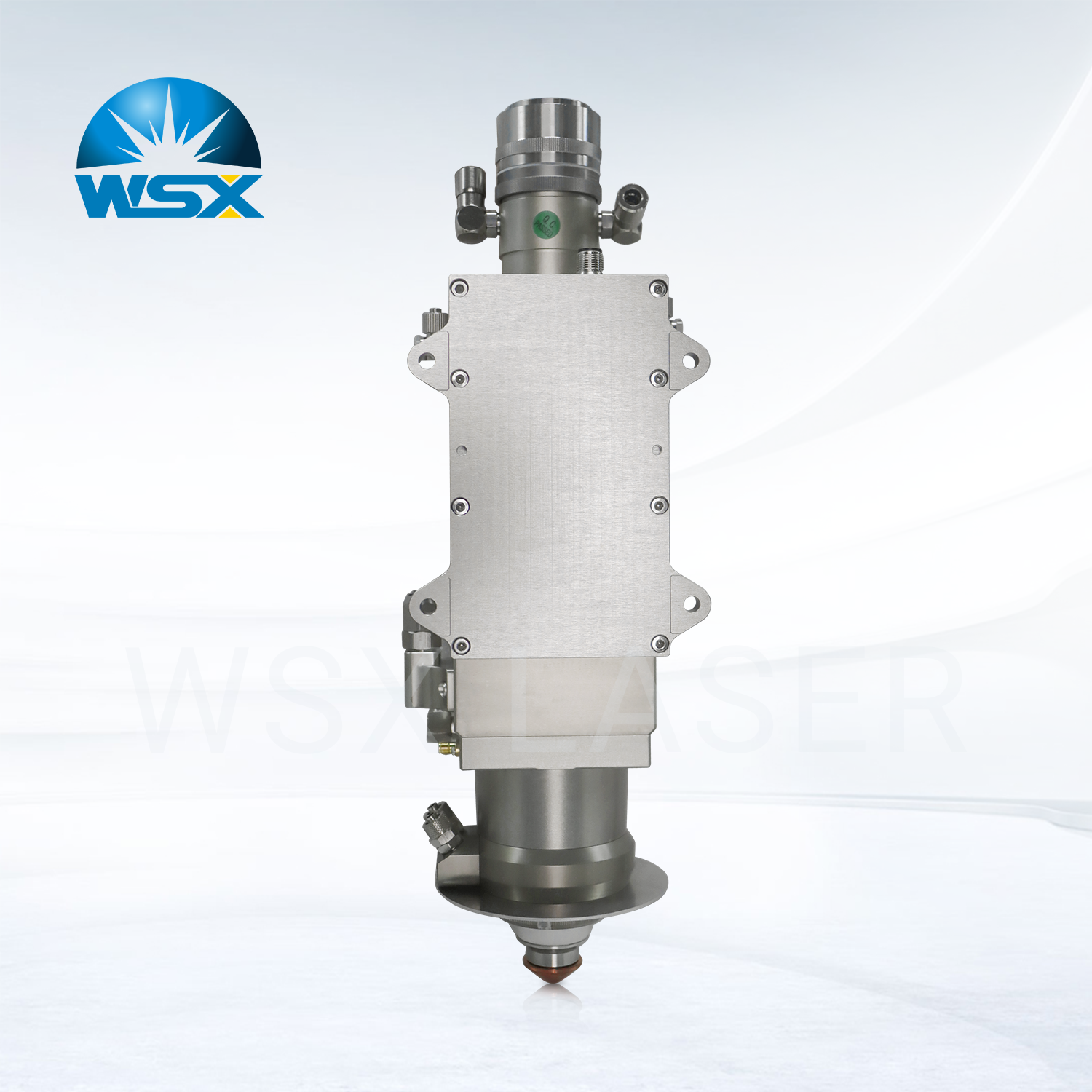

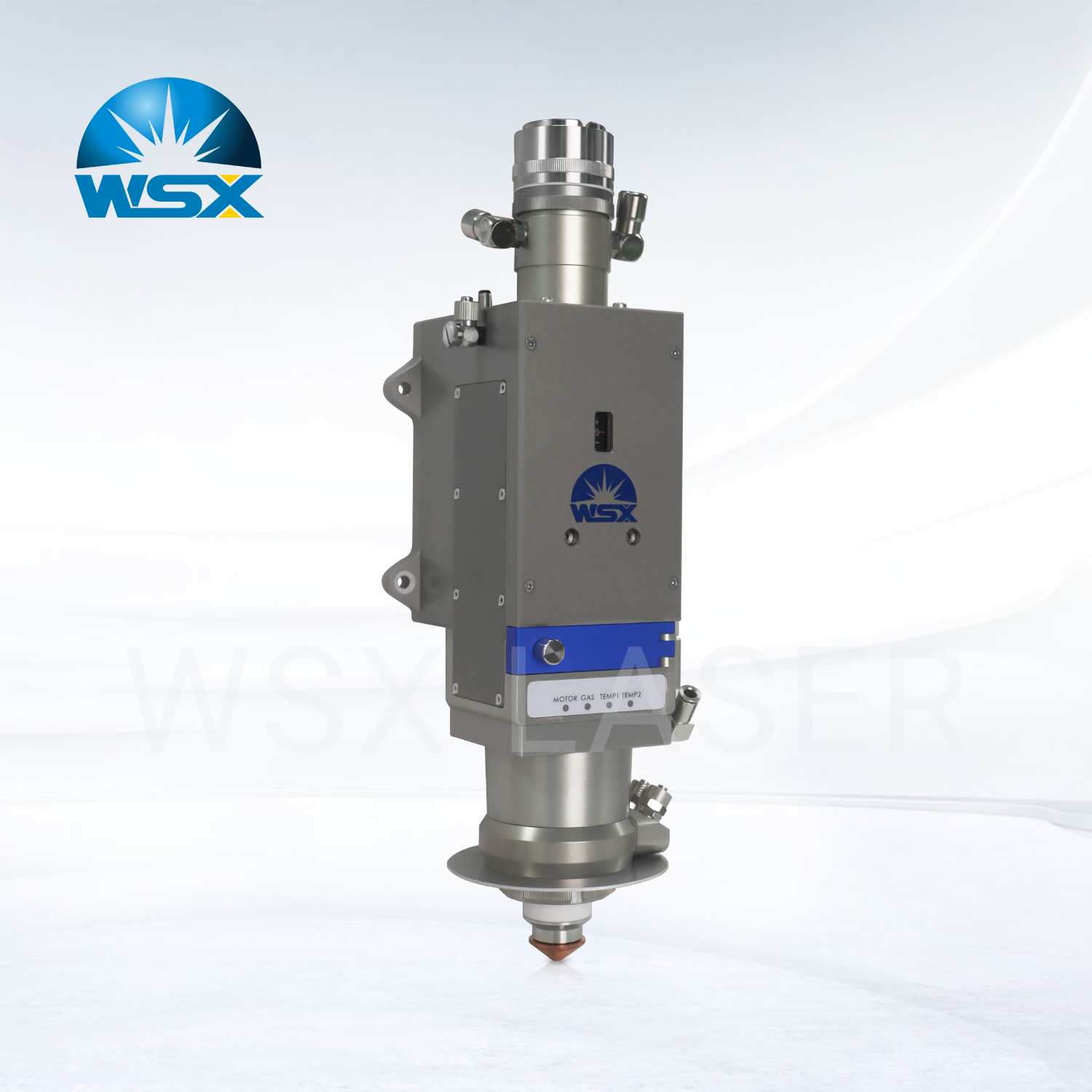

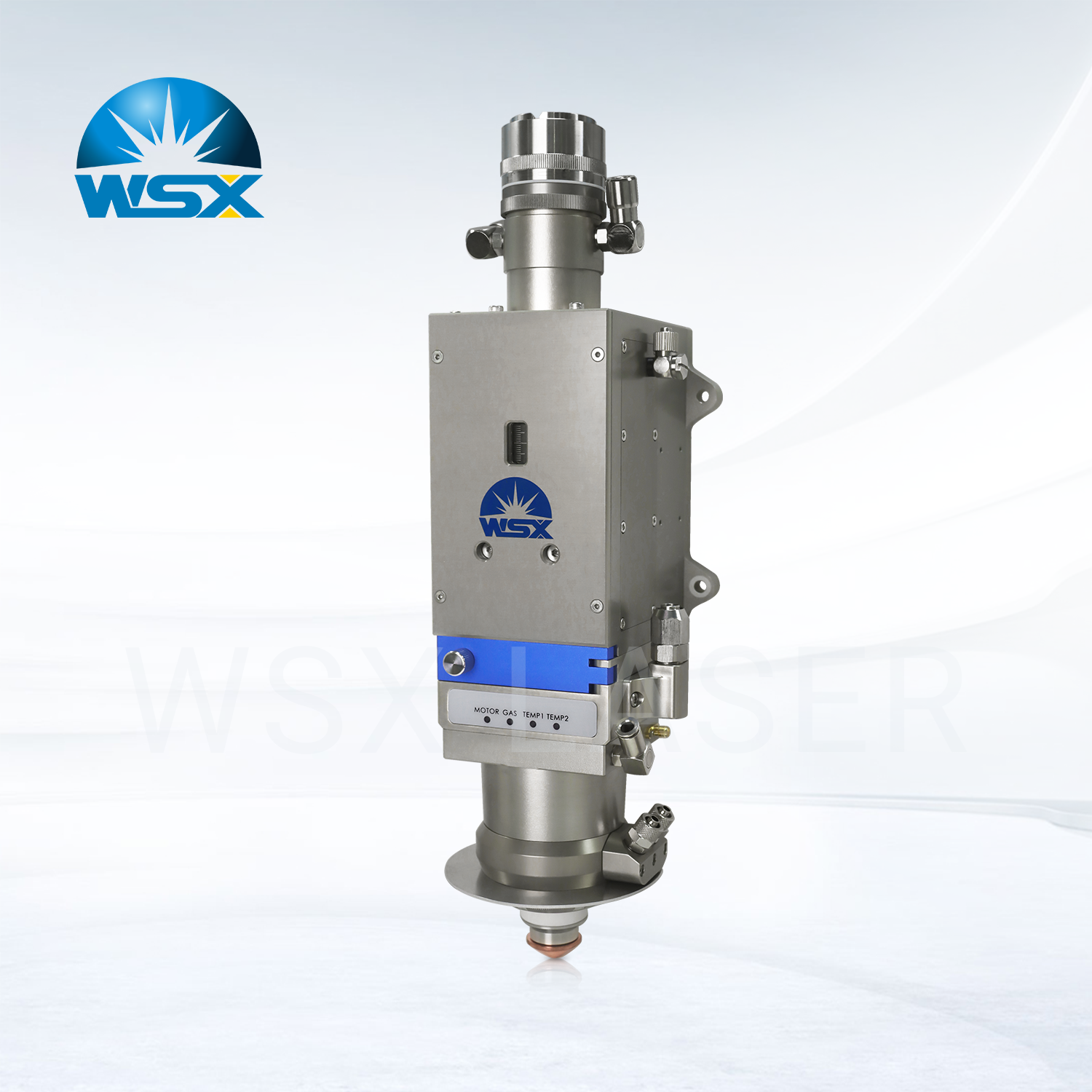

NC152 Plane Cutting Head 15KW
Why Choose the WSX NC152?
Precision - Oriented Cutting:
With a 15KW power capacity, the WSX NC152 offers a delicate balance of power and precision. It can handle materials with finesse, whether it’s thin sheets or materials with fine details, ensuring clean and accurate cuts that meet high - quality standards.
Advanced Parameter Monitoring:
Bid farewell to guesswork! The cutting - edge monitoring system of the NC152 provides real - time feedback on critical parameters such as the temperature of collimating, focusing, and protective lenses, cavity humidity, and cutting air pressure. This ensures stable and consistent cutting results throughout the operation.
Stray Light Protection:
The NC152 is equipped with a stray light monitoring feature that constantly keeps track of the stray light value inside the cutting head cavity. This not only prevents damage to the cutting head caused by excessive stray light but also narrows down the scope for detecting contaminated lenses, saving time and resources.
Optimal Cooling Mechanism:
The combination of water - cooling and air - cooling in the cavity design of the NC152 ensures that the device maintains an ideal temperature during long - term, high - load operations. This effectively eliminates cutting defects caused by abnormal temperature, guaranteeing reliable performance.
Reliable Built - in Drive:
The high - performance built - in drive of the NC152 ensures the stability and reliability of the system. It significantly reduces the frequency of maintenance and simplifies the operation process, leading to a substantial increase in overall work efficiency.
User - Friendly Drawer Design:
The collimating, focusing lens barrels, and protective lenses of the NC152 all adopt a drawer - type design. This makes maintenance a breeze, allowing operators to quickly access and replace components as needed.
Optimized Structural Design:
The one - piece structural design of the NC152 has been carefully optimized to minimize errors during processing and assembly. This provides a solid foundation for the stable operation of the cutting head, ensuring long - term performance.
Enhanced Cutting Efficiency:
With its lightweight design, high acceleration, optimized optical configuration, and smooth airflow design, the NC152 boosts both cutting quality and efficiency. It can handle complex cutting tasks with ease, making it a valuable asset for any production line.
Wide Range of Nozzle Options:
The NC152 comes with a variety of nozzle apertures (1.2/1.5/1.8/2.0/2.5/3.0/3.5/4.0/4.5/5.0/6.0) and nozzle types (single - layer/double - layer), offering flexibility to adapt to different cutting requirements.
Technical Specifications:
Power Capacity: 15KW
Maximum Air Pressure: 2.5MPa
Collimating Focal Length: F100
Focusing Focal Length: F200
Collimating Protective Lens: D25.4*4
Focusing Protective Lens: D34*5
Centering Adjustment Range: ±1.5mm
Nozzle Type: Single - layer/Double - layer
Laser Wavelength: 1070 + 30nm
Weight: 5.5kg
Applicable Power: ≦15KW
Nozzle Aperture: 1.2/1.5/1.8/2.0/2.5/3.0/3.5/4.0/4.5/5.0/6.0
