In the world of laser processing, precision and accuracy are everything. Whether it’s laser marking, engraving, cutting, or welding, the quality of the final product depends heavily on how well the laser beam is controlled and focused. Among the critical components ensuring this precision is the focusing optics, with two main contenders dominating the landscape: the traditional focusing lens and the specialized F-theta lens.
Understanding Traditional Focusing Optics
Traditional focusing optics typically refer to spherical or simple plano-convex lenses. These lenses focus a laser beam to a single focal point where maximum energy concentration occurs. The design is straightforward, and such lenses are widely used in many optical systems.
Key Characteristics of Traditional Lenses:
Spherical Focus: The lens focuses the laser beam onto a curved surface due to spherical aberration.
Field Curvature: The focal plane is not flat; rather, it follows a curved shape. This causes the laser spot to be in focus at the center but out of focus near the edges.
Spot Size Variation: The laser spot size can increase or blur when scanning across larger areas, reducing precision.
Simpler Manufacturing: Easier and less costly to produce than complex aspheric lenses.
Limited Scan Area: Most effective for small, fixed working areas where the beam remains near the lens center.
While traditional lenses are suitable for basic laser applications with limited scanning or stationary beam delivery, their limitations become apparent in high-precision and large-area scanning environments.

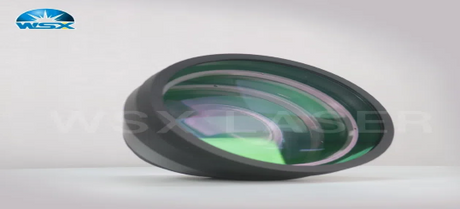

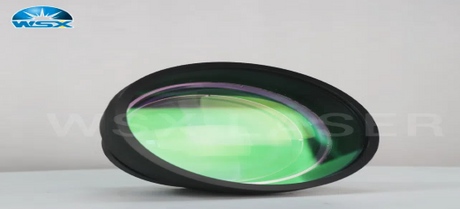

What is an F-theta Lens?
An F-theta lens is a specialized optical component designed specifically for laser scanning systems. Its name derives from the characteristic formula describing the relationship between the scanning angle (theta) and the focal distance (f).
Unlike traditional lenses, an F-theta lens creates a flat field focus, meaning the focal points lie along a flat plane instead of a curved surface. This enables consistent focus and spot size across the entire scan field.
Core Features of F-theta Lenses:
Flat Field Focusing: Ensures all points across the scan area are sharply focused on the same plane.
Linear Scan Mapping: The displacement of the laser spot is linearly proportional to the scanning angle, facilitating precise beam positioning.
Advanced Optical Design: Typically uses multiple aspheric elements to correct aberrations and field curvature.
Wide Scan Angles: Enables larger working areas while maintaining focus quality.
Higher Cost and Complexity: Due to precision engineering and materials.
Key Differences Between F-theta and Traditional Lenses
Feature | Traditional Focusing Lens | F-theta Lens |
Focus Plane | Curved | Flat |
Spot Consistency | Blurs at edges | Sharp across entire field |
Beam Mapping | Non-linear, requires correction | Linear, inherent in design |
Field of View | Limited | Larger, supports wide scan angles |
Applications | Stationary or small scan areas | Laser scanning, marking, engraving |
Manufacturing Complexity | Simpler, lower cost | Complex, higher cost |
Correction Needed | Digital compensation often required | Minimal to none |
Why the Difference Matters in Laser Applications
1. Precision and Quality of Marking
In laser marking and engraving, clarity and sharpness are paramount for producing high-quality results. Traditional lenses often cause distortion and blurring at the edges of the scan field, especially noticeable in fine details such as small text, intricate logos, or delicate vector patterns. This inconsistency not only diminishes the aesthetic appeal but can also lead to errors in critical applications like industrial parts identification, serial number engraving, and brand labeling.
In contrast, F-theta lenses maintain a constant laser spot size and sharp focus across the entire working area. This capability ensures:
Clear, crisp markings even at the far corners of the scan field, eliminating blurring or fading effects.
Accurate replication of complex vector graphics, preserving the integrity of detailed designs without distortion.
Consistent depth of engraving, which is crucial for maintaining uniformity and quality control across production batches.
2. Maximizing Usable Scan Area
The ability to maintain focus across a wide area significantly increases the usable scan field. This means manufacturers can process larger parts or multiple smaller items simultaneously without needing to reposition the laser or use additional equipment.
Traditional lenses, because of their curved focal plane, restrict the effective working field and necessitate either multiple setups or slower, stepwise scanning processes. This limits throughput and increases production time. F-theta lenses, with their flat-field design, allow for continuous scanning over larger surfaces, boosting overall efficiency and throughput in manufacturing environments.
3. Reduced Need for Calibration and Correction
Systems equipped with traditional lenses typically require frequent digital corrections or detailed calibration tables to compensate for nonlinear beam displacement and focal distortions. These processes add complexity to system setup, increase software demands, and can lead to longer downtimes for recalibration or troubleshooting.
F-theta lenses inherently provide linear beam displacement and flat-field focusing, which significantly simplifies system integration. This design reduces or eliminates the need for extensive digital correction, leading to faster setup times, less software overhead, and minimal operational disruptions. As a result, manufacturers experience more consistent output with less technical intervention.
4. Enhanced Automation and Integration
The precision and consistency of F-theta lenses enable seamless integration with automated manufacturing systems such as CNC machines, robotic arms, and assembly lines. This exact positioning capability is essential for processes requiring high repeatability and tight tolerances.
Benefits include:
Faster production cycles, since automation can run at higher speeds without compromising accuracy.
Higher repeatability, ensuring every part is processed identically, which is critical for quality assurance and compliance.
Lower scrap rates and waste reduction due to fewer errors and reworks, directly impacting cost savings and sustainability goals.
5. Long-Term Cost Efficiency
Although F-theta lenses have a higher upfront cost compared to traditional focusing optics, their precision and reliability often result in significant long-term savings.
These savings arise from:
Reduced rework and defects, decreasing material wastage and labor costs associated with correcting errors.
Less frequent recalibration and maintenance requirements, lowering downtime and service expenses.
Increased productivity through higher throughput and faster processing times, enabling more products to be completed in less time.
Over the lifespan of a laser system, investing in high-quality F-theta lenses can yield a superior return on investment by improving overall operational efficiency and product quality.
Typical Applications Suited for F-theta Lenses
Laser Marking and Engraving: Industrial part identification, jewelry, electronics.
PCB Manufacturing: Precise drilling and marking.
Medical Device Processing: Accurate etching and microfabrication.
Automotive Industry: Durable branding and part marking.
Aerospace: High precision cutting and marking on complex components.
Selecting the Right Lens for Your Laser System
When deciding between traditional and F-theta lenses, consider the following:
Working Area Size: Larger fields benefit from F-theta optics.
Required Precision: Fine details demand flat-field focus.
Production Volume: High throughput favors F-theta lenses.
Budget Constraints: Traditional lenses might suit low-cost, small-scale projects.
Maintenance and Calibration Capacity: Systems with limited calibration ability perform better with F-theta lenses.
Consulting with optics specialists can help tailor lens selection to your specific needs.
Conclusion
The choice between traditional focusing optics and F-theta lenses can significantly impact the efficiency, precision, and quality of your laser processing operations. While traditional lenses may suffice for simple, small-scale tasks, the F-theta lens stands out as the superior solution for high-precision, wide-area scanning applications, delivering consistent focus, minimal distortion, and enhanced productivity.
For businesses aiming to elevate their laser processing capabilities and achieve reliable, high-quality results, investing in F-theta lens technology is a smart decision.
To learn more about high-quality F-theta lenses and advanced laser optics solutions, visit Shenzhen Worthing Technology Co., Ltd. Their expertise in precision optical components can help optimize your laser systems for maximum performance. Feel free to contact them for tailored advice and product offerings.
