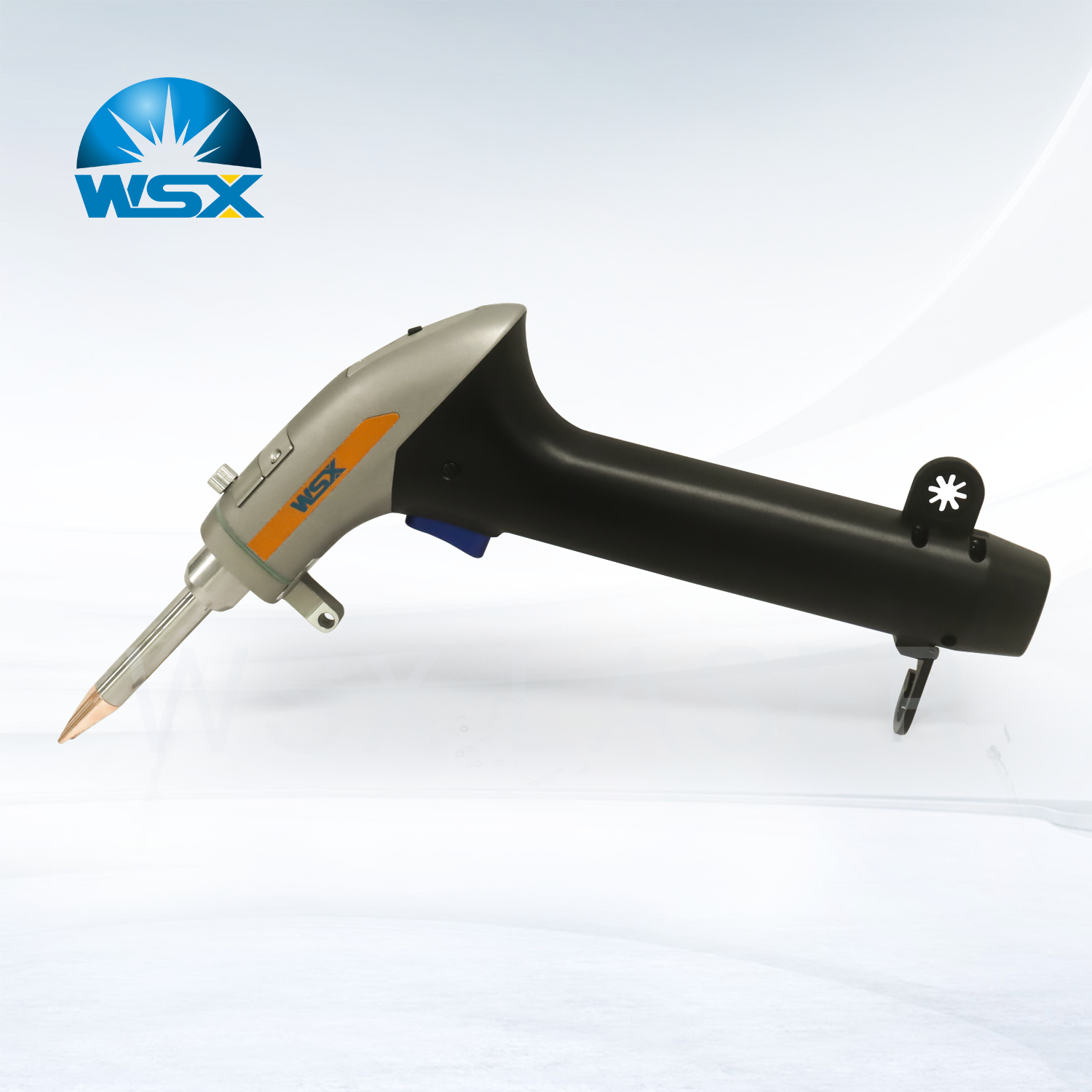

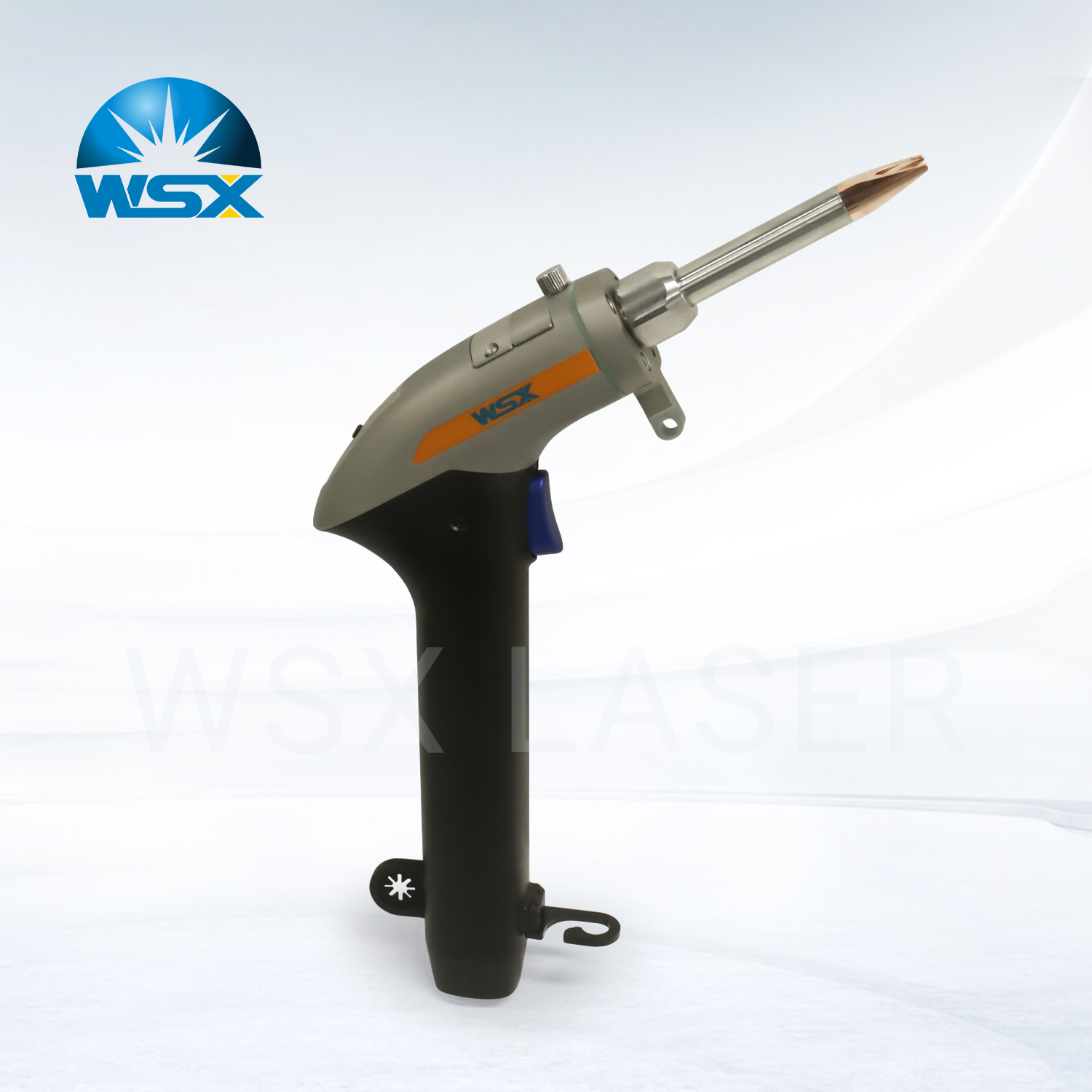

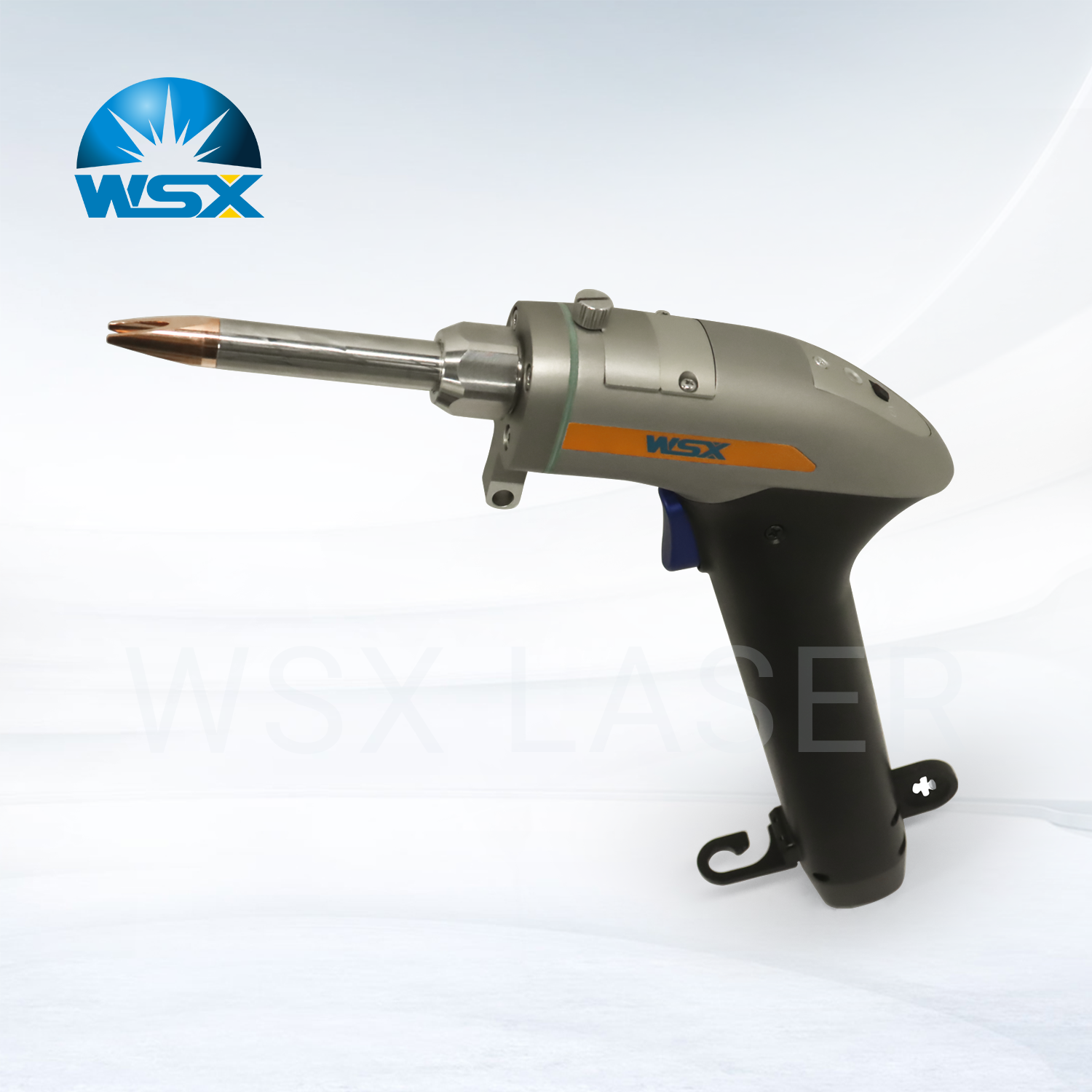

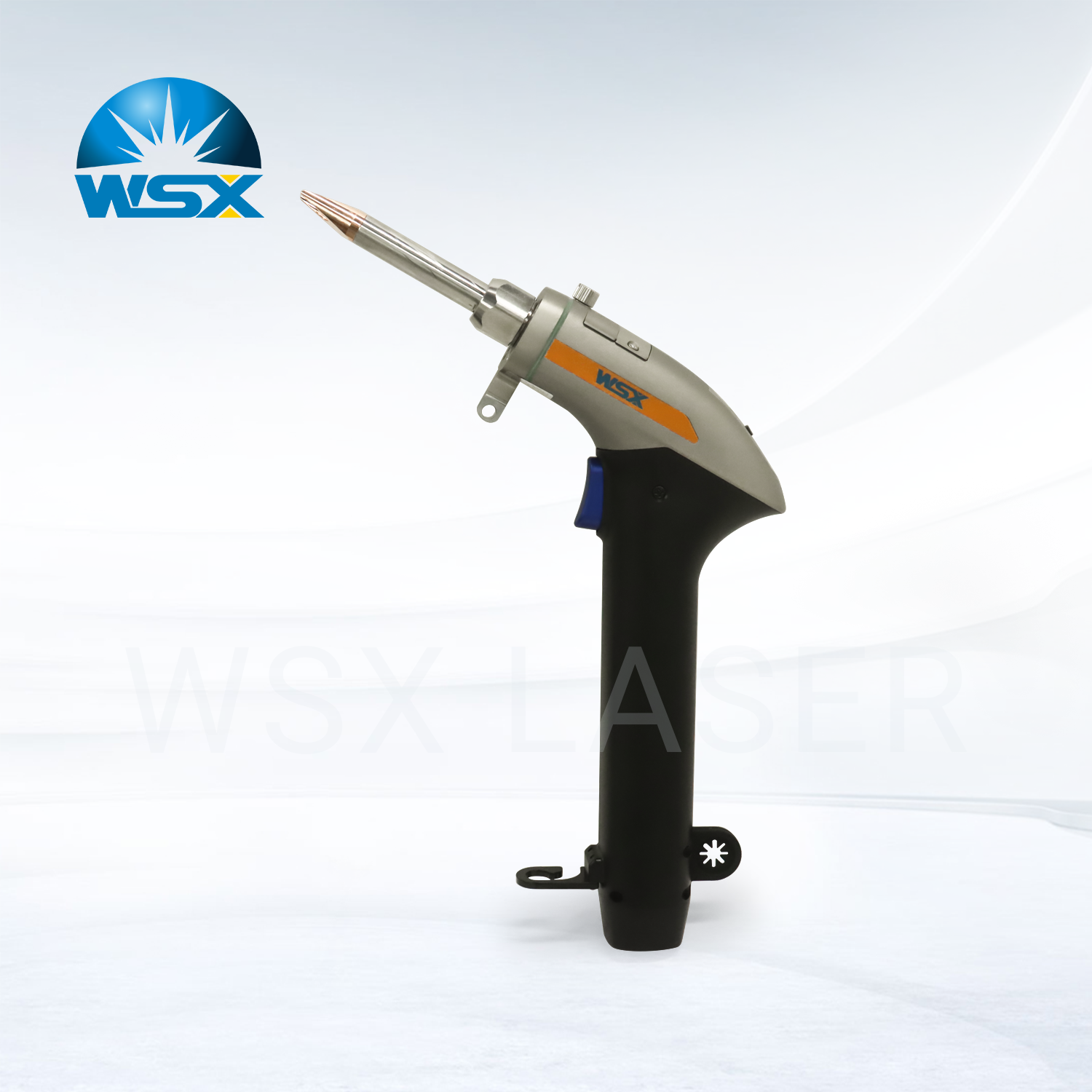

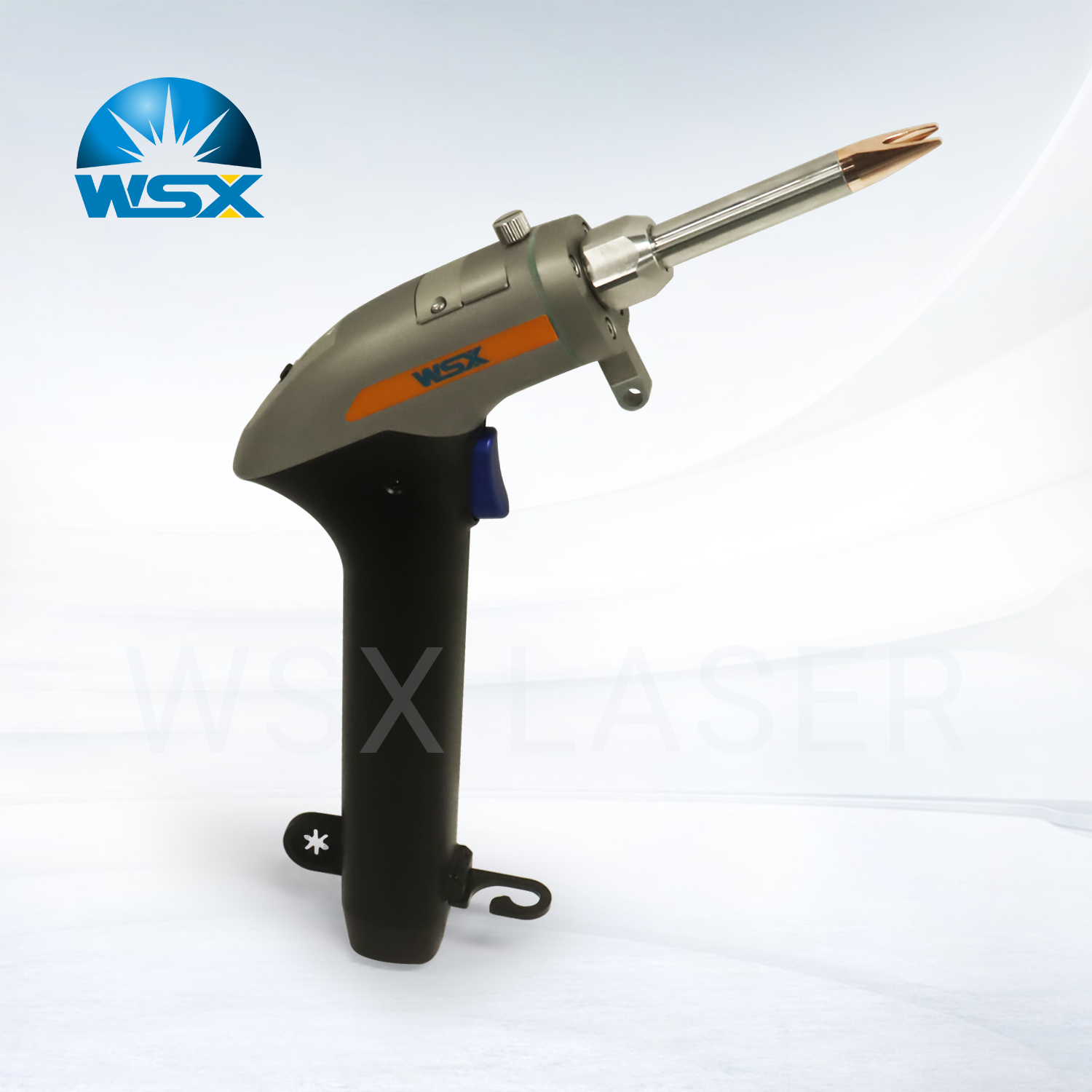

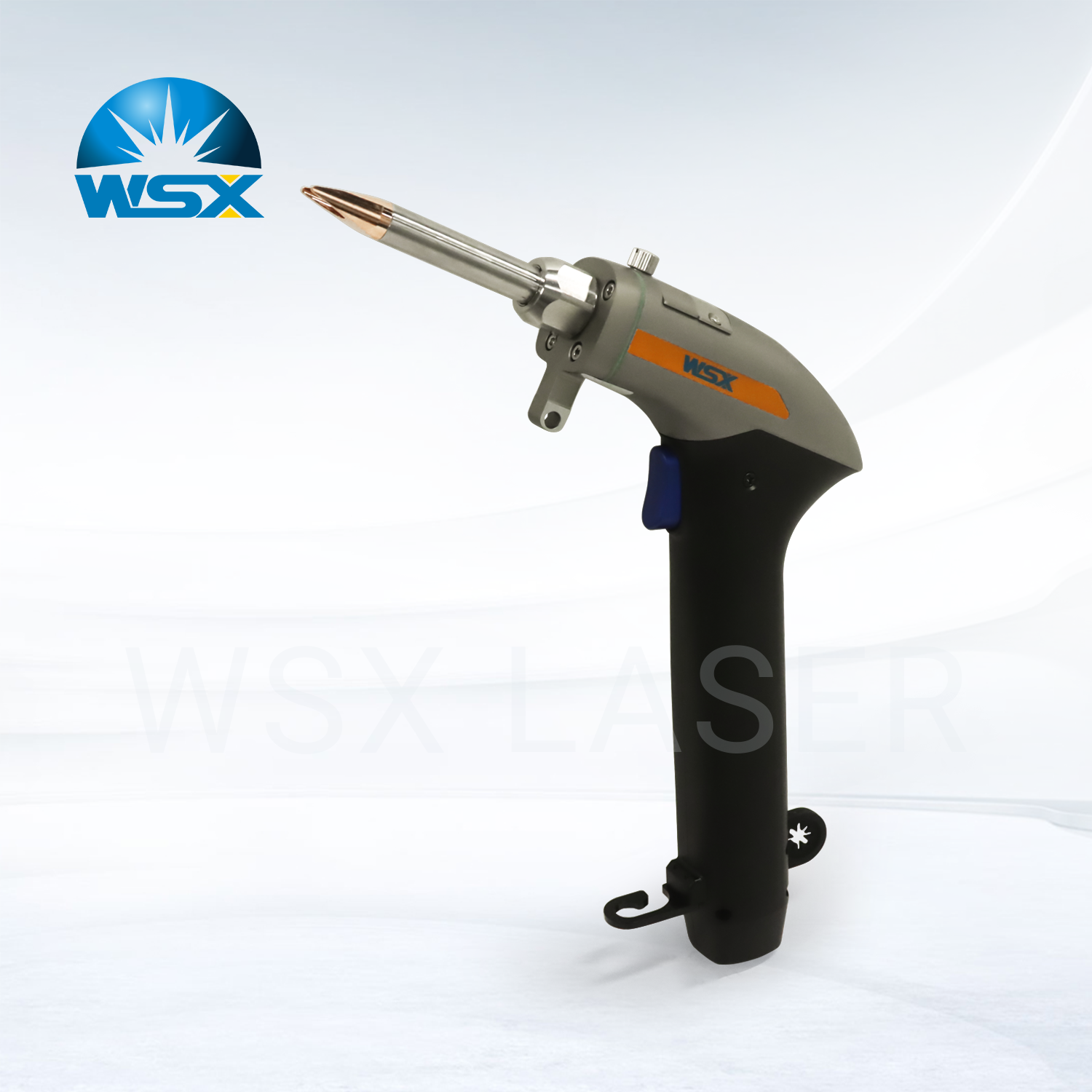

Why Choose the WSX HD20?
Superior Performance
The WSX HD20 handheld welding head offers unparalleled performance in the welding industry. Its coaxial laser incident design ensures a highly concentrated and precise laser beam, which leads to clean, strong, and consistent welds. Whether you are working on thin - gauge materials or thicker metals, the WSX HD20 can handle a wide range of welding tasks with ease. This precision reduces the need for post - welding finishing, saving you time and money in the long run.
User - Friendly Design
Ergonomics are at the forefront of the WSX HD20's design. The welding head is lightweight, weighing only 0.53kg, making it comfortable to hold for extended periods. This reduces operator fatigue, especially during large - scale welding projects. The one - key wire feeding and stopping toggle button simplifies the welding process, allowing even novice operators to quickly get up to speed and perform high - quality welds.
Intelligent Monitoring
Equipped with self - developed control software, the WSX HD20 provides real - time monitoring of key parameters such as body temperature, power status, motor operation, and laser output. This intelligent monitoring system helps prevent overheating and other potential issues, ensuring the stability and reliability of the welding process. It also allows for early detection of problems, enabling timely maintenance and minimizing downtime.
Quick and Easy Maintenance
The focusing lens and protective lens of the WSX HD20 feature an integrated drawer - type design. This allows for quick and effortless replacement, reducing the time spent on maintenance. With minimal downtime for maintenance, you can keep your production line running smoothly and maximize your output.
Technical Specifications
Interface and Compatibility
Interface Type: QCS. This standardized interface ensures seamless compatibility with a variety of laser sources, allowing for easy integration into existing welding setups.
Laser Incident Mode: Coaxial. The coaxial laser incident mode provides a more accurate and consistent laser delivery, resulting in better welding quality.
Laser Parameters
Laser Power: ≤2KW. This power range makes the WSX HD20 suitable for a wide range of welding applications, from delicate jewelry work to heavy - duty industrial welding.
Laser Wavelength Range: 1070±20nm. This specific wavelength is optimized for efficient absorption by most metals, ensuring effective welding.
Optical Parameters
Collimation Focal Length: 60mm. The collimation focal length helps in shaping the laser beam before it reaches the workpiece, ensuring a well - defined and focused beam.
Focusing Focal Length: 150mm. This focusing focal length allows for a proper depth of focus, enabling precise welding at various distances from the welding head.
Adjustable Range: 0 - 6mm. The adjustable range provides flexibility in adjusting the focus of the laser beam according to the specific requirements of the welding task.
Gas and Other Parameters
Shielding Gas: Nitrogen. Nitrogen is used as the shielding gas to protect the weld area from oxidation and other contaminants, ensuring a high - quality weld.
Weight: 0.53kg. The lightweight design makes the WSX HD20 easy to handle and maneuver during welding operations.
