Product Description

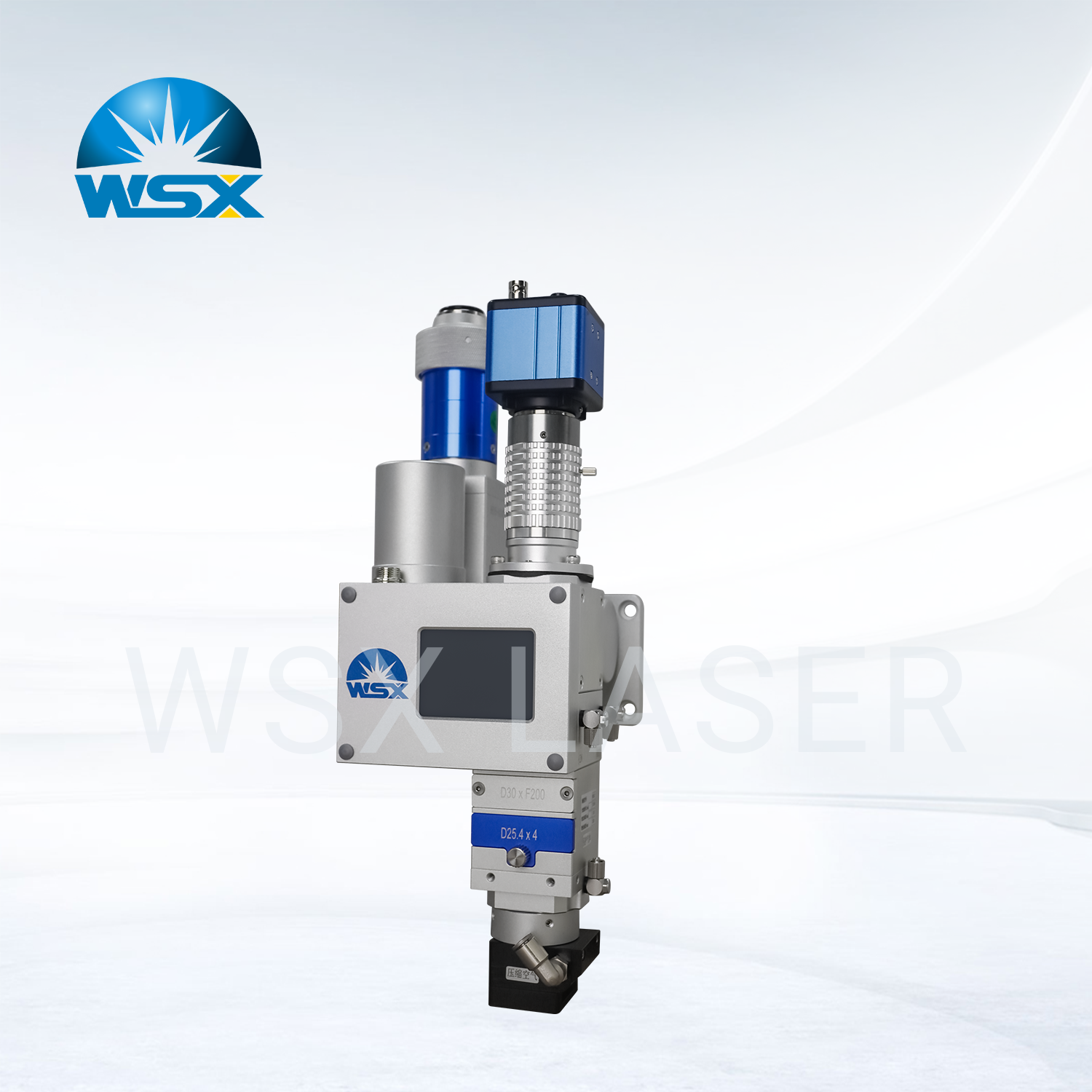

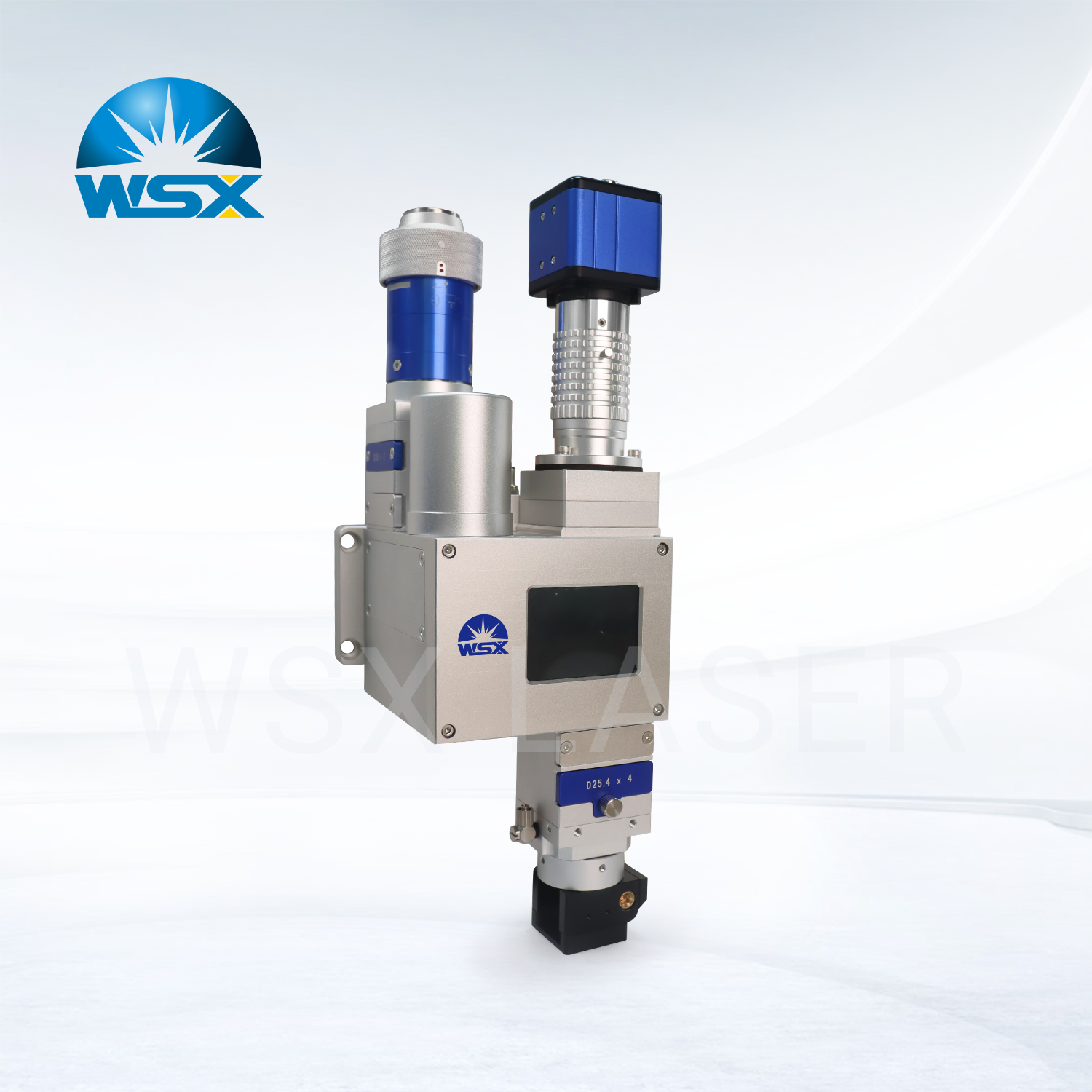

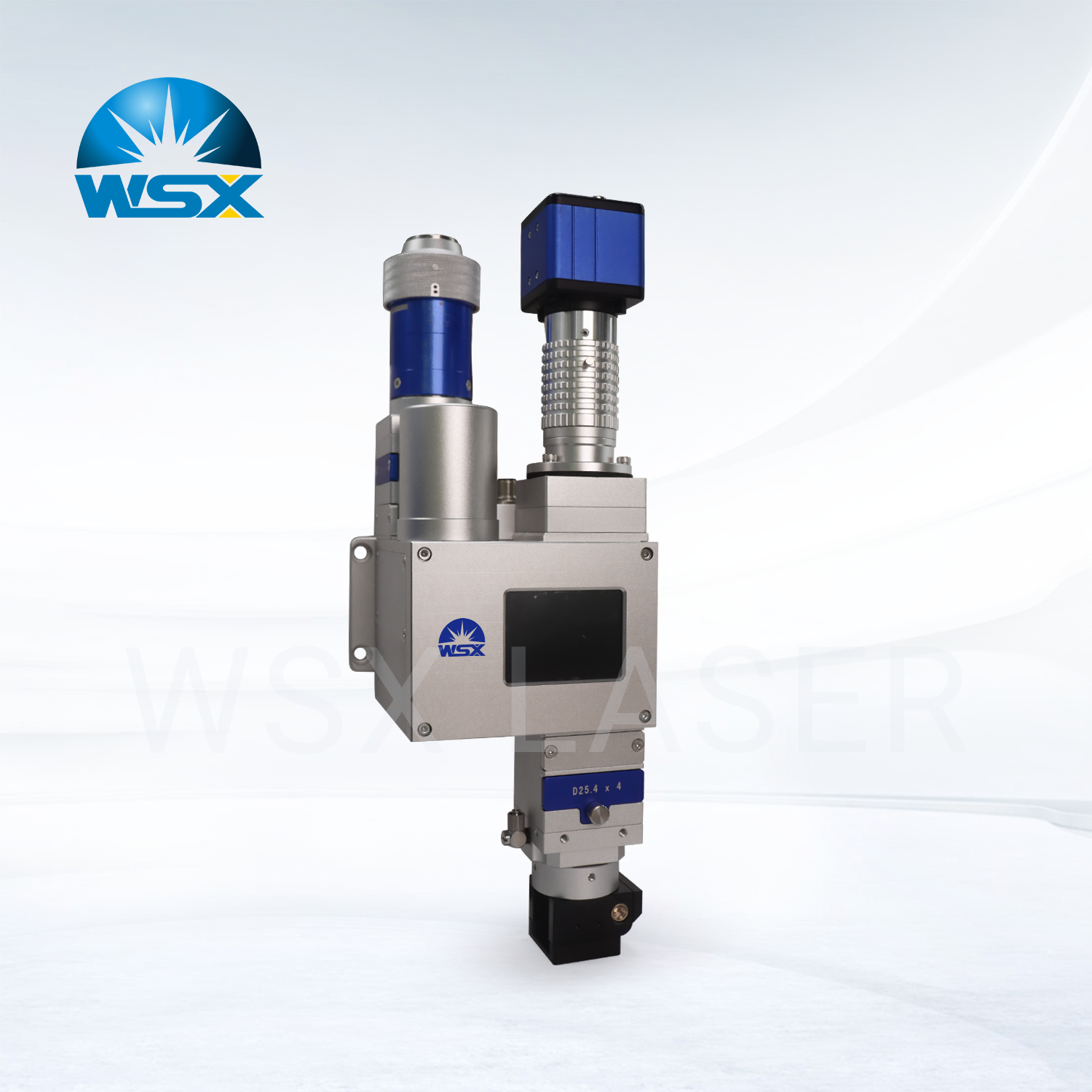

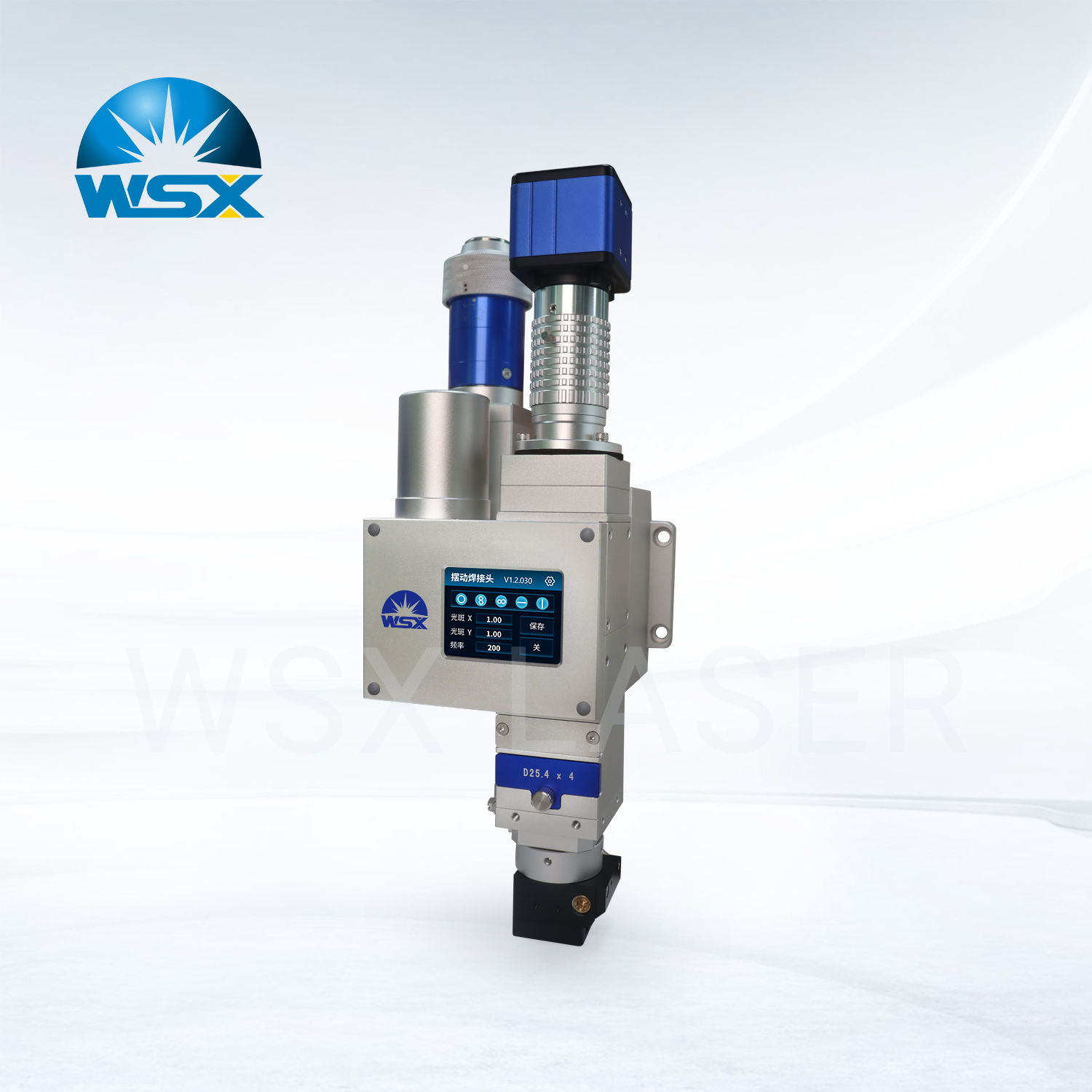

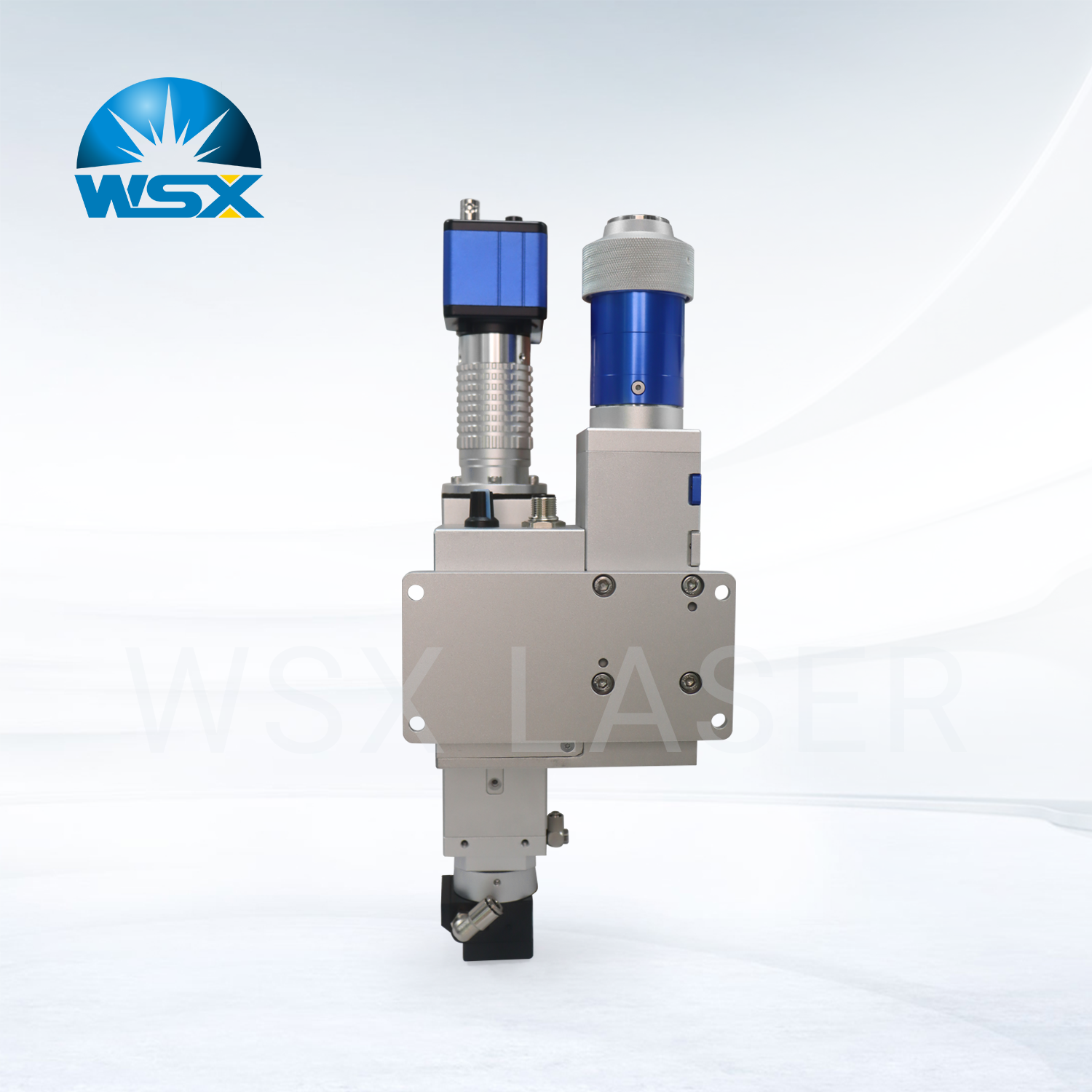

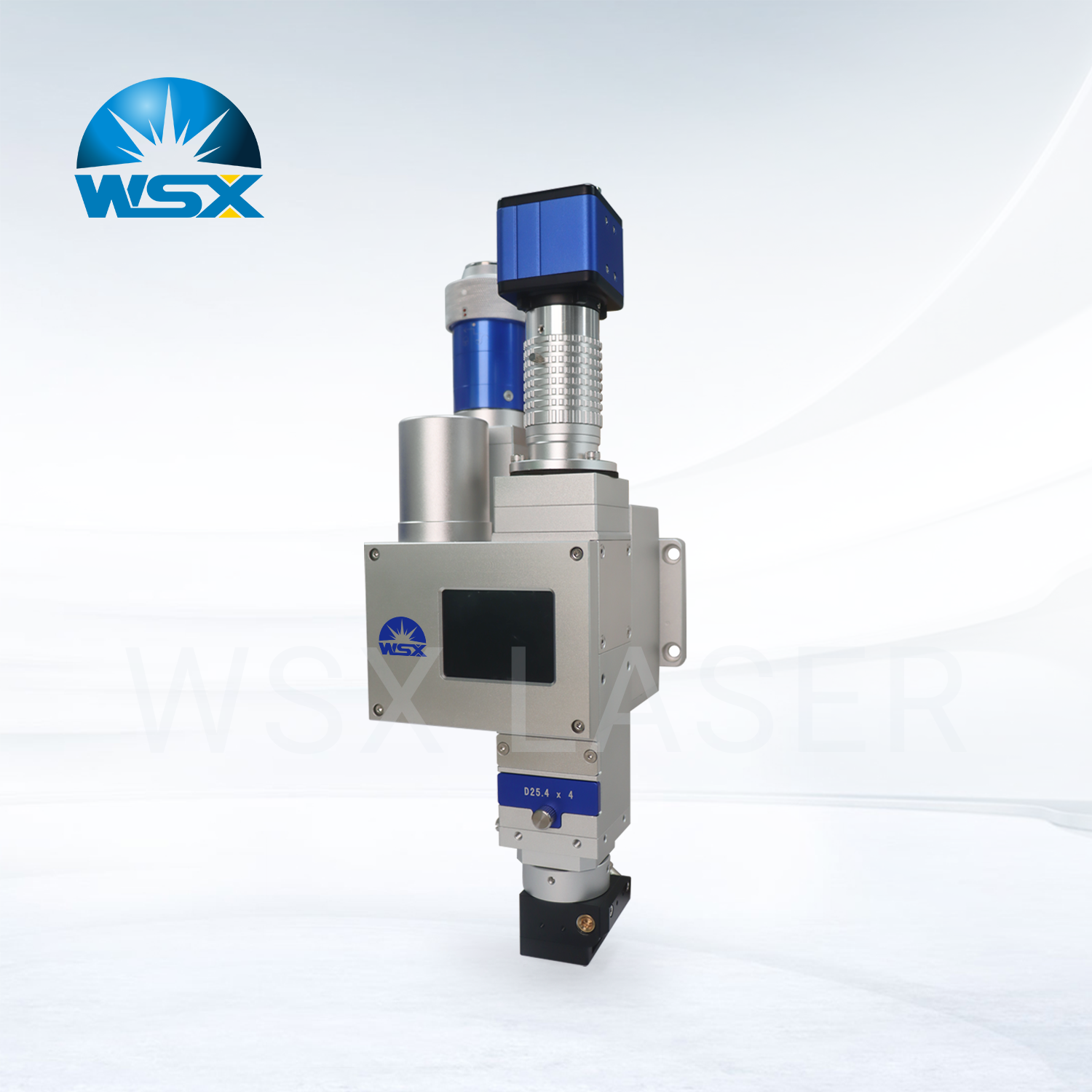

The WSX HB15 is a 3000W high - performance oscillating laser welding head that excels in aluminum alloy welding and medium - power welding applications. It offers an economical and reliable solution for industrial welding needs.
This welding head is equipped with motor - driven X and Y axis galvanometer mirrors, providing multiple swing modes. The motors come with an abnormal alarm function, which is beneficial for welding workpieces with irregular shapes and larger gaps, significantly enhancing the welding quality.
The internal structure of the welding head is completely sealed, protecting the optical parts from dust contamination. The protective lens has a drawer - type structure, allowing for easy and quick replacement.
It can be connected to various lasers with a QBH connector, ensuring great flexibility and compatibility in different welding setups.
Product Parameters:
Applicable Power: 3000W
Collimation Focal Length: 100mm
Focusing Focal Length: 200mm
Weight: ≈3kg
Effective Clear Aperture: 24mm
QBH Connector: Compatible
Suitable for Various Lasers
