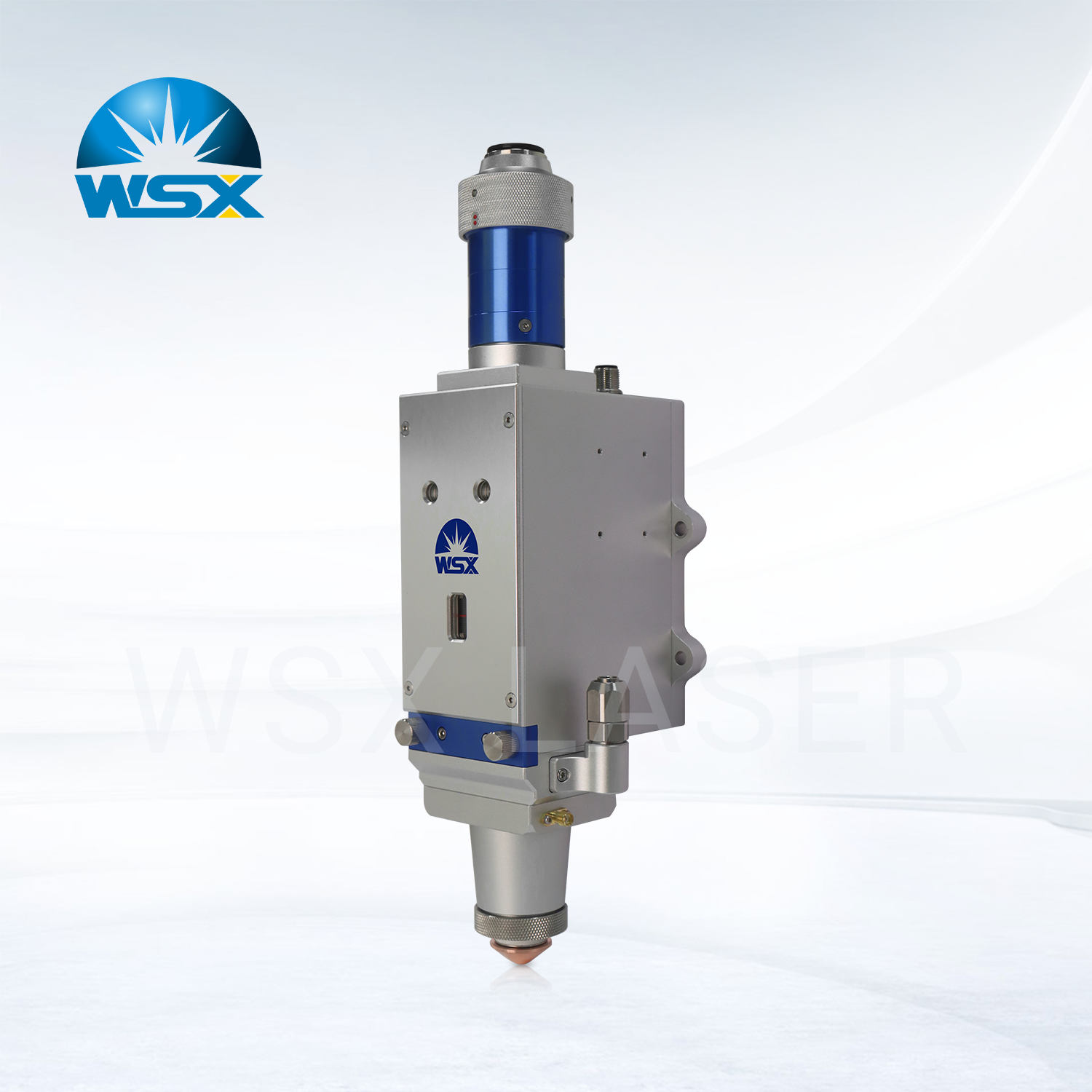

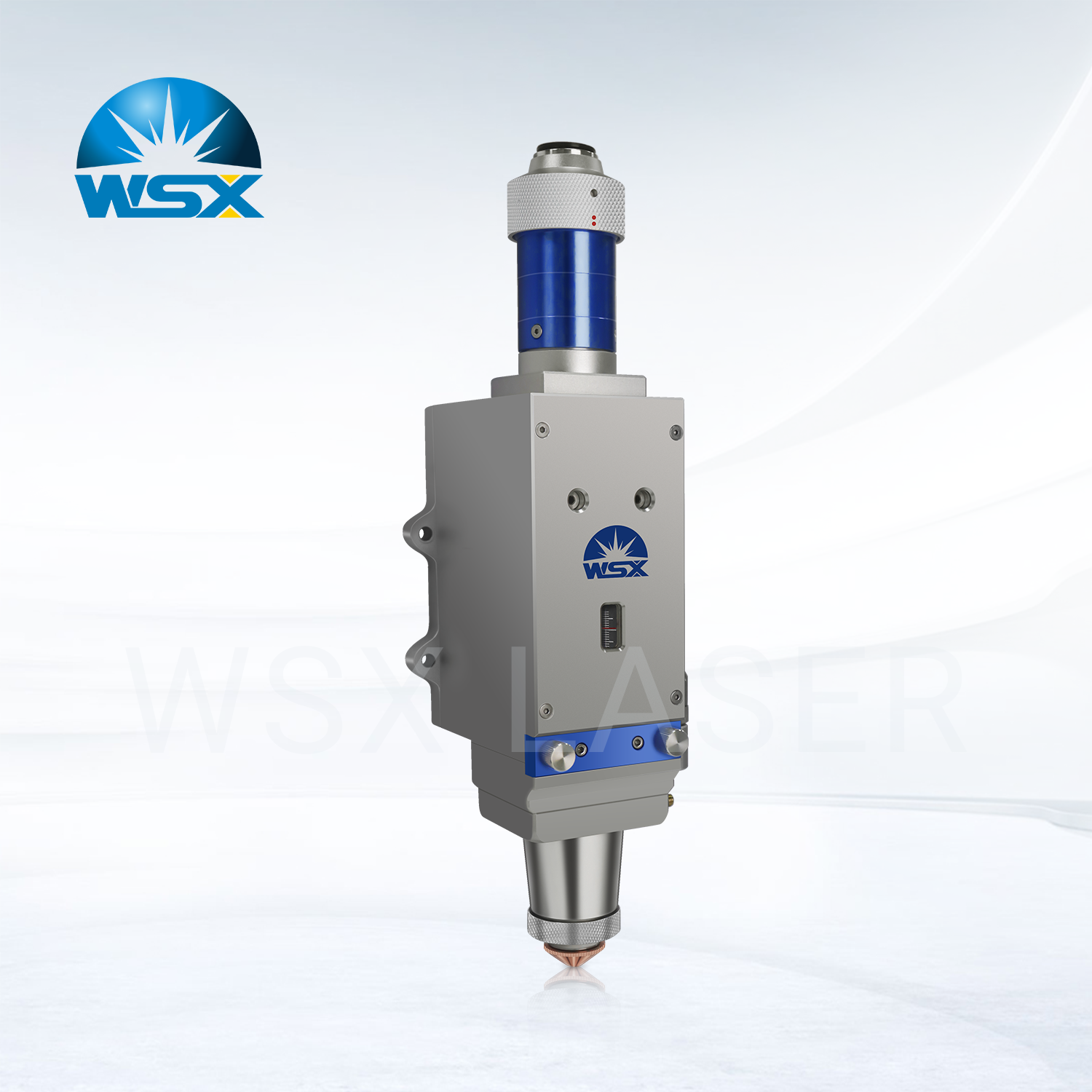

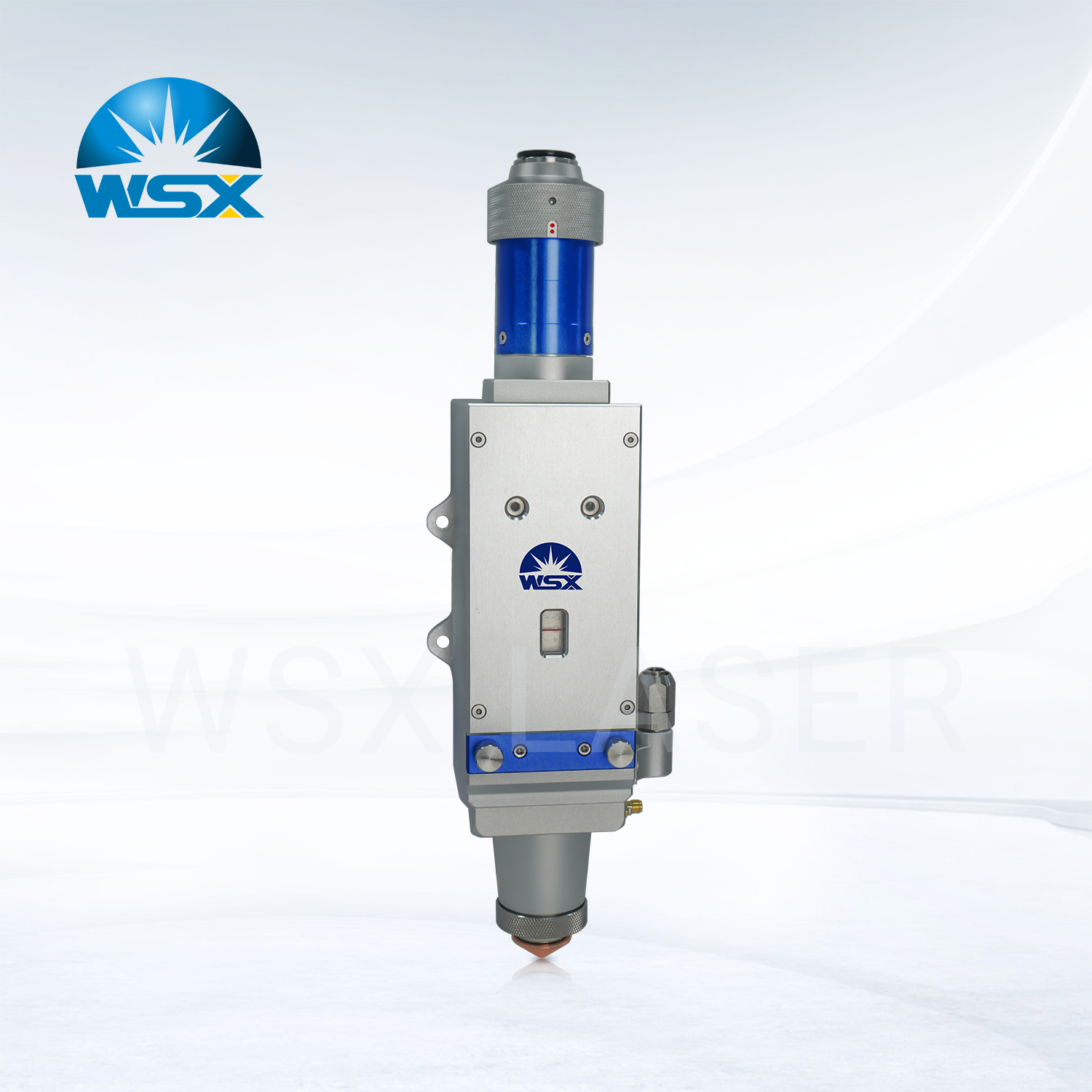

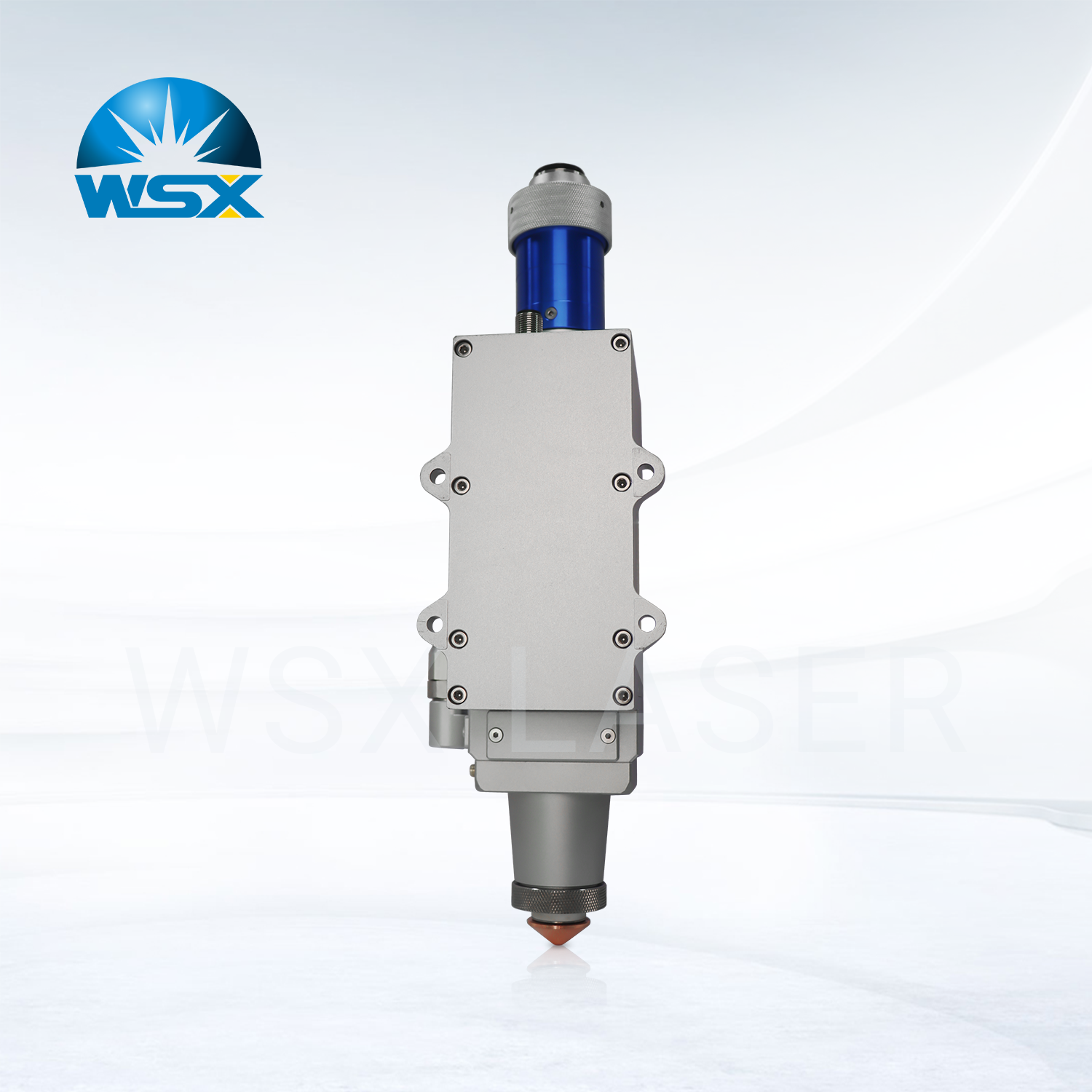

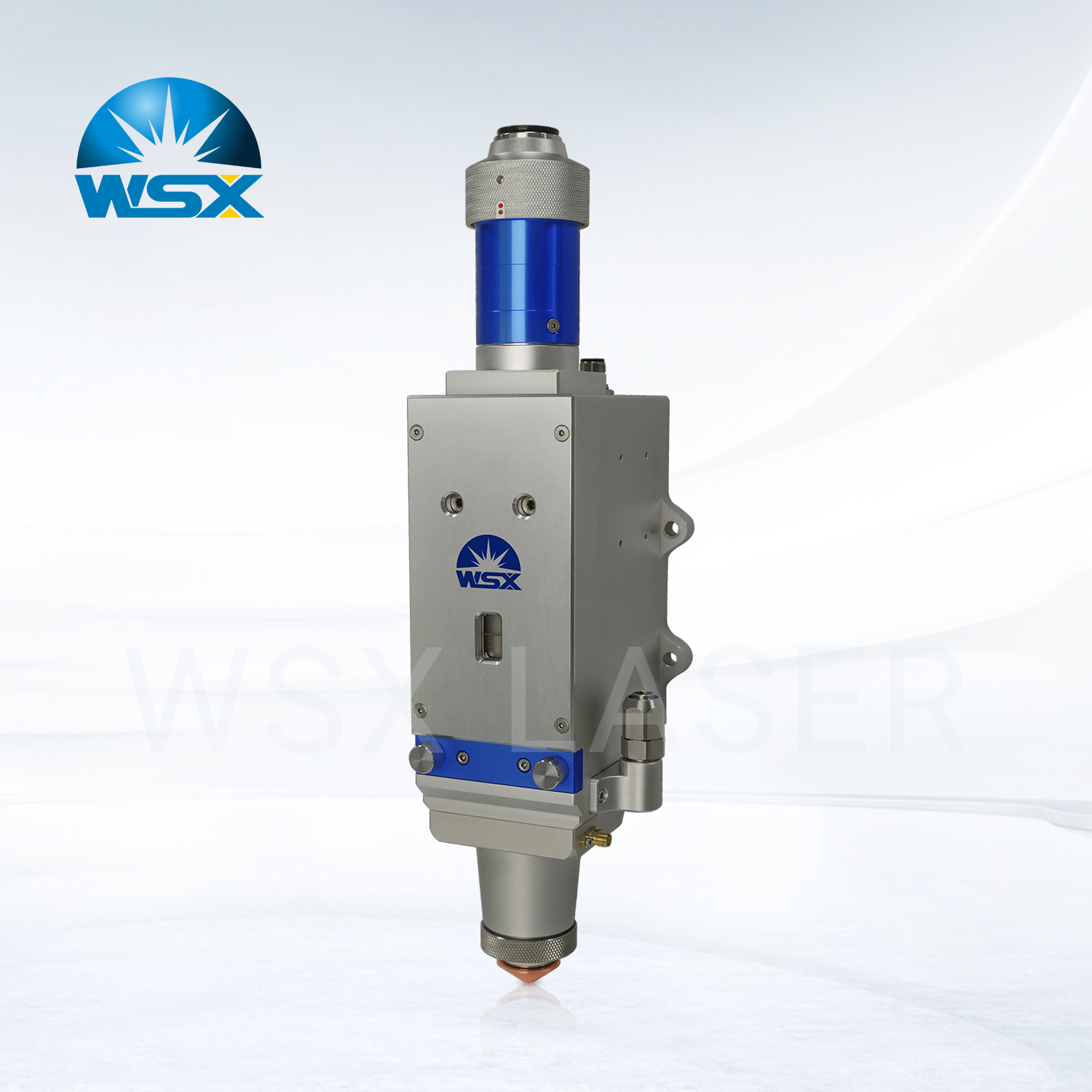

WSX NC36 Fiber - Type Focus - Adjustable Laser Cutting Head

The WSX NC36 4KW fiber laser cutting head is a top - notch industrial tool. Its adjustable fiber type allows for precise focusing according to different cutting tasks. With a maximum air pressure of 2.5MPa, it can handle various materials effectively.

The drawer - type maintenance design is a game - changer, enabling quick and easy access to collimating, focusing lens barrels, and protective lenses, reducing downtime. The real - time parameter monitoring function keeps tabs on protective lens temperature and cavity air pressure, ensuring stable and efficient cutting.

This cutting head features an optimized one - piece structure, minimizing machining and assembly errors. Its high - compatibility fiber interface, compatible with QBH/G5, enhances versatility. The high - sealing protection inside prevents environmental pollution of optical lenses, extending their life. The built - in high - performance drive ensures reliable operation. Ideal for wholesale purchase, it’s a great addition to any manufacturing setup.

Quantity:
Availability:





Inquire Add to Basket

Model:
NC36
Brand:
WSX

Product Description

Why Choose the WSX NC36?

Powerful Cutting Performance:

With a 4KW power capacity, the WSX NC36 offers sufficient energy to cut through a variety of materials. It can handle different thicknesses of metals, ensuring a smooth and efficient cutting process for your production needs.

Versatile Parameter Range:

The NC36 comes with a wide range of adjustable parameters. It has a maximum air pressure of 2.5MPa, multiple choices for collimating and focusing focal lengths (F75/F100 for collimation and F125/F150/F190 for focusing), and various nozzle types (single - layer and double - layer) and aperture sizes (1.0 - 5.0). This versatility allows it to adapt to different cutting requirements and materials.

User - Friendly Maintenance:

Thanks to its drawer - type maintenance design, the collimating lens barrel, focusing lens barrel, and protective lenses can be easily accessed. This simplifies the maintenance process, saving you time and effort, and reducing the downtime of your cutting operations.

Real - Time Parameter Monitoring:

The built - in sensors in the cutting head continuously monitor crucial parameters such as the temperature of the protective lens and the air pressure inside the cavity. This real - time monitoring ensures the stability and efficiency of the cutting process, allowing you to detect and address any potential issues promptly.

Stable Structural Design:

The optimized one - piece structure design of the NC36 effectively reduces machining and assembly errors. This provides a solid foundation for the stable operation of the cutting head, ensuring consistent cutting quality over time.

High Compatibility: The fiber interface of the WSX NC36 is compatible with multiple specifications like QBH/G5. This high adaptability allows it to be easily integrated into different laser systems, meeting the diverse needs of various application scenarios and enhancing the overall flexibility of your equipment.

Enhanced Protection:

The carefully designed internal structure achieves a high level of sealing. This protects the optical lenses from external environmental pollution, extends their service life, and reduces maintenance costs in the long run.

Reliable Drive System:

The high - performance built - in drive ensures the stable and reliable operation of the cutting head. It significantly reduces the frequency of repairs and the complexity of operation, thereby improving the overall work efficiency.
