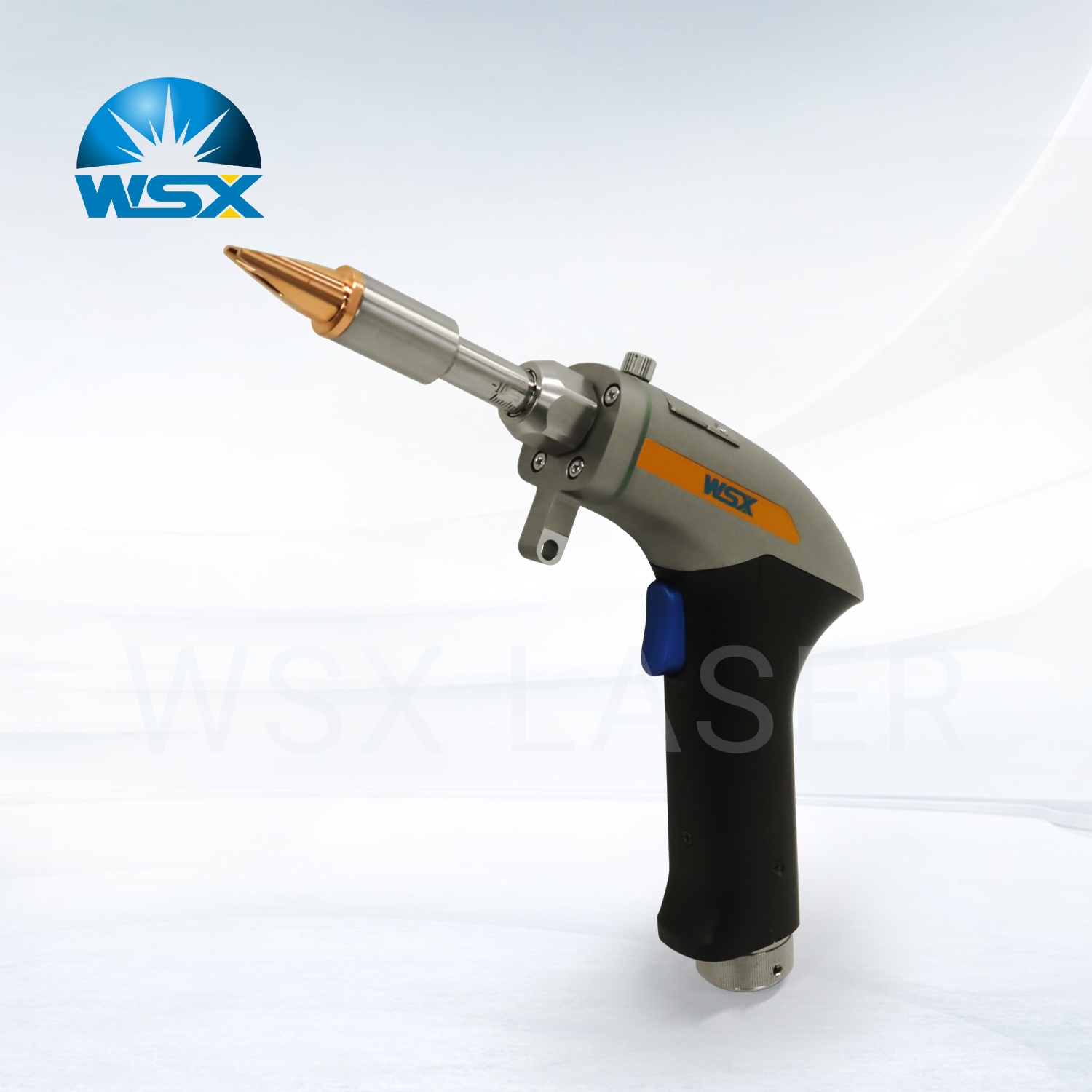

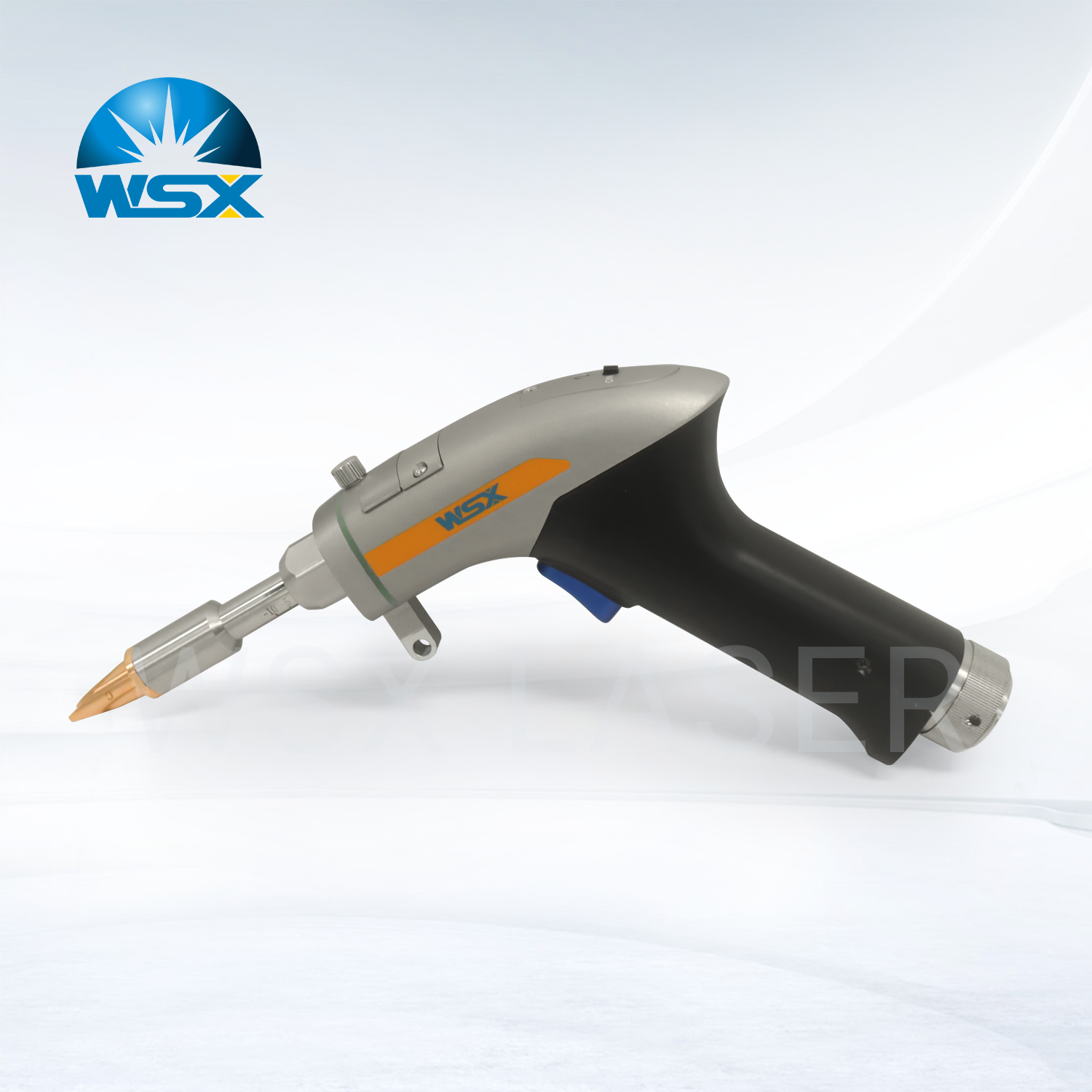

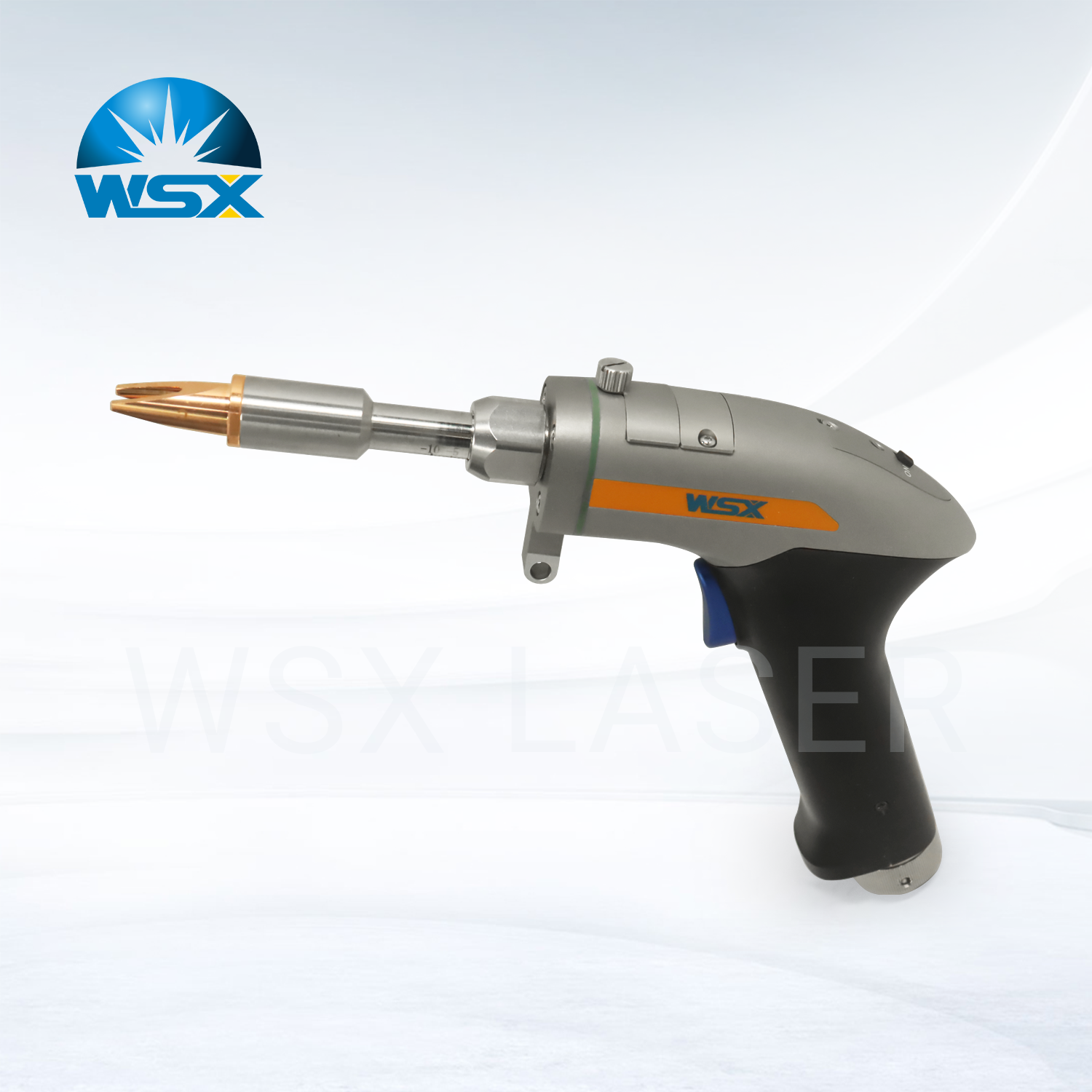

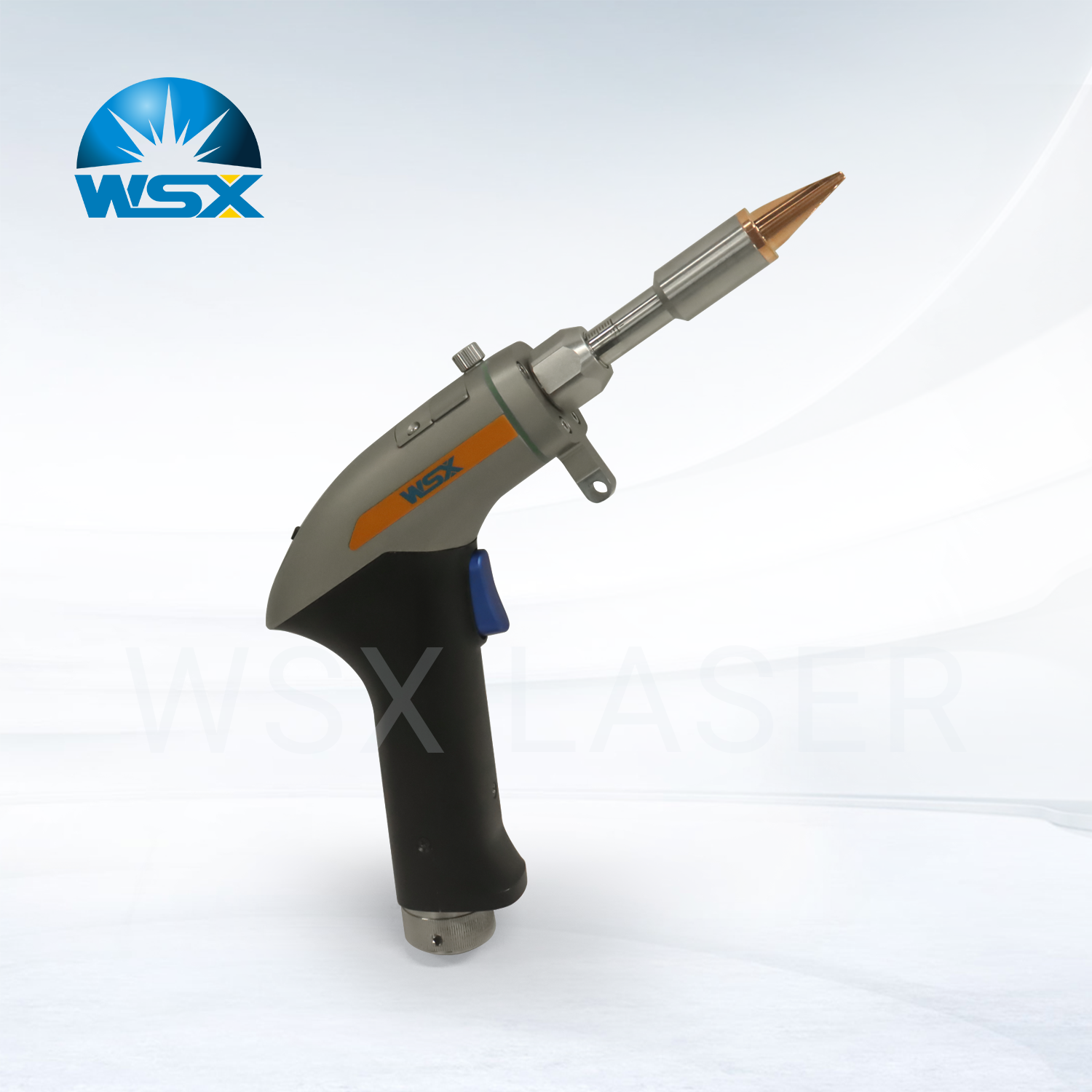

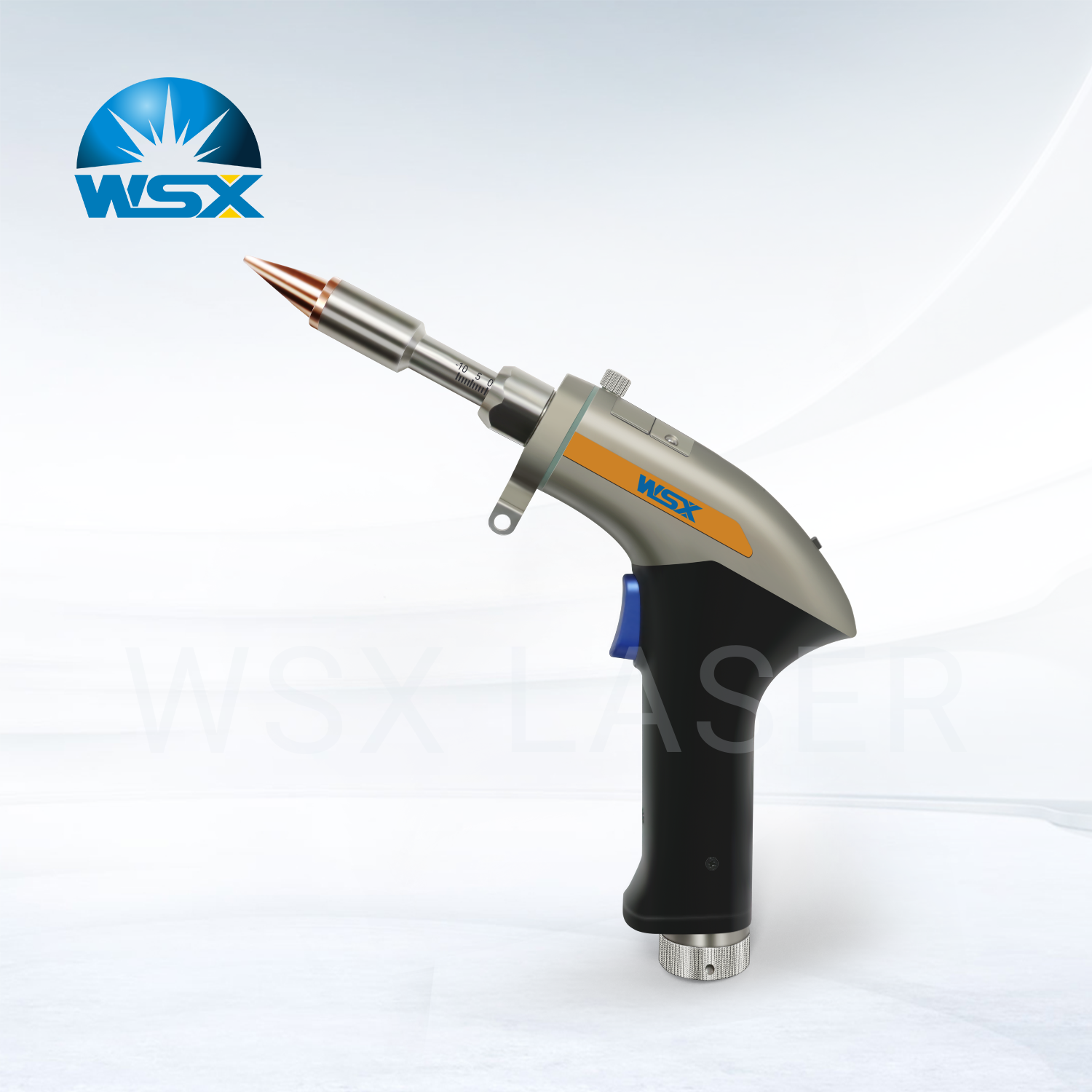

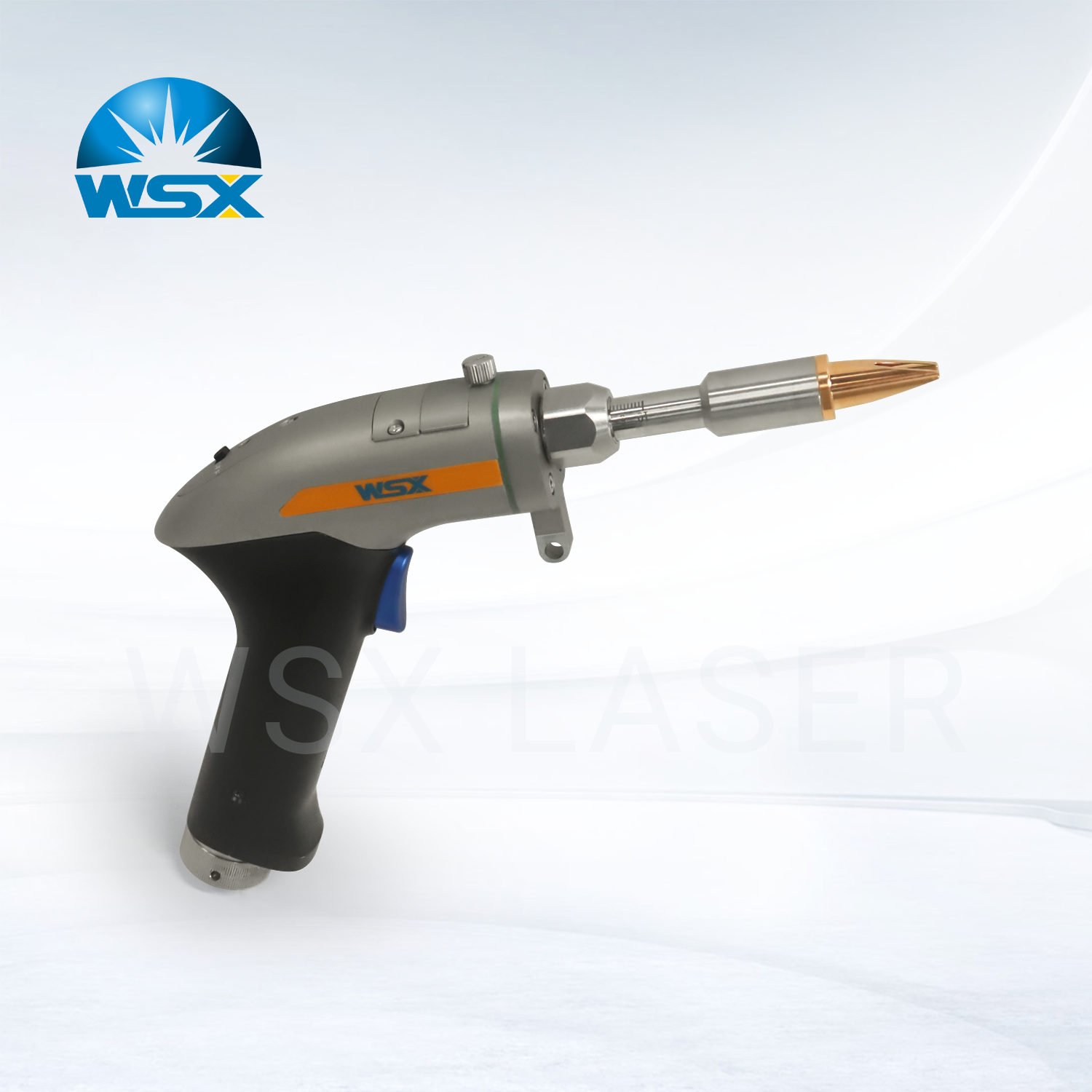

HD21 Water - Cooled Handheld Laser Welding Head

Why Choose the HD21?

On the basis of the old - style product, this new product has not only inherited the advantages of its predecessor but also improved some of its drawbacks. Moreover, it has achieved a revolutionary upgrade in terms of functions, greatly enhancing the user experience for customers and ensuring safer operation. The highlights of the new product are as follows:

• Structural Optimization in Appearance and Weight:

The product’s external dimensions have been optimized, and its weight has been reduced, making it easier for customers to use.

• Improved Ergonomics in Grip Design:

The way the product is held by the user has been optimized. While ensuring product safety and performance, ergonomic design has been added,providing a more comfortable user experience.

• Enhanced Key Performance:

The material of the keys has been optimized, increasing theirservice life and improving the tactile feel.

• Convenient Lens Replacement:

The lens assembly structure has been optimized. A drawer -type replacement method has been added for the protective lens and the focusing lens, making it more convenient for customers to replace consumables.

• Alarm Buzzer in Control System:

An alarm buzzer has been added to the control system,enabling customers to quickly learn about product malfunctions.

• Motor Abnormality Alarm:

The control system can now detect motor disconnection, erratic movement, and other series of faults in real - time. It can promptly detect and handle these issues, avoiding the previous problems such as difficult abnormal judgment, complex cause -finding, and slow detection results, thus minimizing product damage more safely and

efficiently.

• Laser Output Abnormality Alarm:

The control system can detect the output status of laser enable, laser DA, and laser PWM in real - time. When the laser fails to emit light during debugging, it can immediately display the problem, reducing the time for customers to troubleshoot faults during the debugging process.

• Self - testing Module:

A self - testing module has been added to the control system. When a malfunction occurs during the use of the product, it can precisely conduct a system self - check for each function. Even users without relevant experience can quickly locate the problem.

• New Process Library Mode:

The control system uses a brand - new process library mode. The processes pre - installed at the factory are the optimal - effect processes tested by our professional process engineers using this product. Customers can directly start processing by simply selecting the corresponding process according to the current processing material and

thickness.

Function Description

The main functional modules of this product include: laser output early - warning, motor feedback

abnormality early - warning, process library (with 75 built - in processing processes), dynamic

adaptation of laser models, laser output control, galvanometer output control, unit module self - testing,

etc.
