Manufacturing faces a critical bottleneck in today's fast-paced industrial landscape. Laser welding offers superior speed and minimal thermal distortion, outperforming traditional joining methods. However, relying solely on manual operation severely caps your output and introduces unavoidable inconsistency. Even the most skilled operators experience fatigue, leading to micro-tremors and variable travel speeds.
The transition to automation solves these inherent production challenges. A properly integrated Robot Arm shifts laser welding from a highly dependent, skill-based process to a predictable, high-yield manufacturing system. You can eliminate start-stop defects, maintain exact focal distances, and optimize your throughput around the clock. By removing human physical limitations from the equation, you elevate your entire assembly line.
This article details how to evaluate, select, and implement robotic automation for laser welding. We will focus on operational realities, hardware compatibility, and verifiable return on investment (ROI). You will learn the exact frameworks needed to scale production reliably and avoid common integration pitfalls.
Key Takeaways
Precision and Repeatability: A robot arm eliminates micro-tremors, ensuring exact focal distance and trajectory control critical for high-quality laser welds.
Solution Variability: The choice between collaborative robots (cobots) and traditional industrial arms dictates footprint, safety protocols, and programming complexity.
Integration is Critical: Success depends not just on the robot, but on seamless communication between the arm, the laser source, and the laser heads components supplier.
Risk Mitigation: Real-world implementations require strict attention to payload capacities, cable management, and specialized fixturing.
The Business Case: Framing the ROI of Automated Laser Welding
Scalability Limitations of Manual Welding
Manual welding reaches a hard ceiling quickly. High-volume production lines expose the physical limits of human operators. Fatigue sets in after hours of holding heavy torches, resulting in cycle time inconsistencies. You will often see scrap rates spike toward the end of a shift. When joining premium materials like titanium, aerospace-grade aluminum, or thin-gauge stainless steel, variable heat input causes costly thermal distortion. An automated setup guarantees uniform travel speeds, keeping heat input strictly controlled.
Addressing Modern Labor Realities
The manufacturing sector faces a severe shortage of qualified welders. Experienced professionals are retiring, and fewer younger workers enter the trade. You should view automation as a supplement to human expertise rather than a strict replacement. By integrating automated systems, you elevate your master welders to supervisory roles. They can manage robotic work cells, optimize weld parameters, and oversee quality control rather than physically holding torches. This approach maximizes your existing talent pool while scaling production volumes.
Success Criteria for Capital Expenditure
Evaluating automated solutions requires strict baseline metrics. To justify the capital expenditure (CapEx), you must measure specific outcomes against your current manual processes. A successful integration typically delivers an ROI payback period of 18 to 36 months, depending heavily on your part volume and shift structure. Use the following baseline metrics to frame your business case:
Cycle Time Reduction: Measure the percentage decrease in floor-to-floor time per part.
Scrap Rate Decrease: Track the reduction in rejected assemblies and rework hours.
Consumable Efficiency: Monitor the savings generated by precise shield gas delivery and focused wire feeding.
Machine Uptime: Evaluate the increase in actual arc-on (or beam-on) time compared to manual repositioning delays.

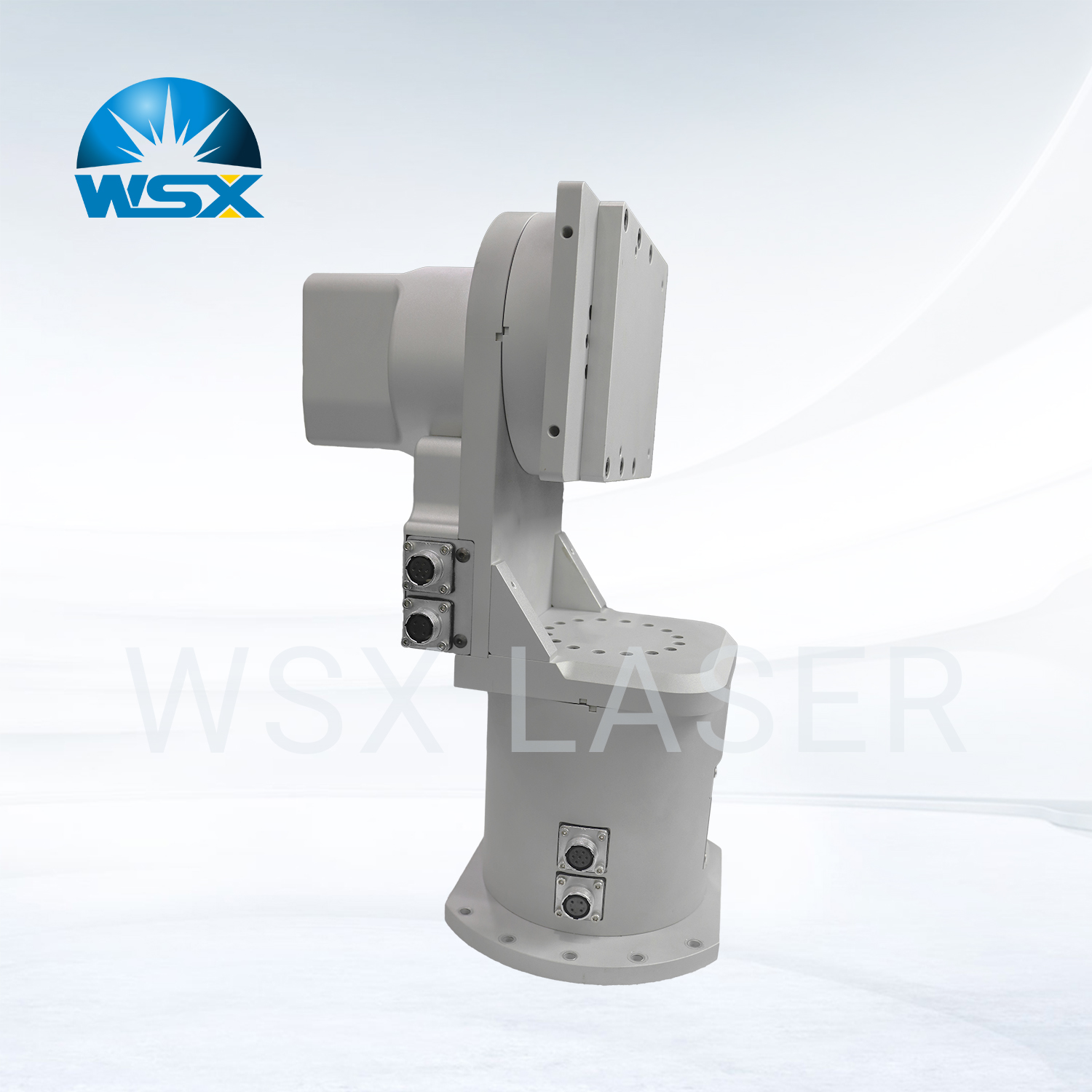

Core Capabilities: How a Robot Arm Translates Specs to Outcomes
Path Accuracy and Repeatability
Traditional MIG or TIG welding creates a relatively broad molten pool. This wide pool forgives minor deviations in the operator's hand path. Laser welding operates differently. The focused laser beam requires exceptionally tight tolerances, often ranging between ±0.02mm to ±0.05mm. If the beam deviates slightly, you risk missing the joint seam entirely, leading to catastrophic part failure. An industrial robotic unit maintains rigid spatial coordinates. It eliminates the micro-tremors associated with human movement, keeping the focal point exactly where the molten keyhole demands it.
Continuous Welding Speeds
Manual welding inevitably involves repositioning. An operator must stop the weld, adjust their body stance, and restart the process. These start-stop cycles introduce significant defects. Each stop creates a cooling point, and each restart introduces potential porosity, cratering, or stress risers. Automated robotic articulation allows for unbroken, continuous weld seams. The system calculates the optimal joint path and moves fluidly around the workpiece. You achieve a homogeneous weld bead free of structural weaknesses.
Complex Orientation and Extended Reach
Modern manufacturing often involves complex 3D joint geometries. Reaching these awkward angles manually requires operators to contort their bodies or repeatedly unclamp and reposition heavy workpieces. A standard 6-axis robotic system provides immense flexibility. The joints rotate and articulate in multiple planes simultaneously. This extended reach allows the tool center point (TCP) to access interior corners, tubular junctions, and curved surfaces without ever stopping the beam. You save massive amounts of time previously wasted on part handling.
Solution Architecture: Cobots vs. Traditional Industrial Robot Arms
Collaborative Robots (Cobots)
Collaborative robots, known as cobots, have transformed high-mix, low-volume manufacturing. They feature intuitive software interfaces and hand-guided teaching functions. You can physically drag the cobot to desired waypoints, making programming much faster for operators lacking strict coding backgrounds.
Pros: Cobots feature a much smaller physical footprint. They use easier teach-pendant programming, enabling rapid changeovers between different part batches. You can deploy them quickly across various workstations.
Realities: Cobots operate at slower maximum movement speeds to comply with safety standards. More importantly, laser welding nullifies the primary benefit of cobots: fence-free operation. Because laser radiation causes instantaneous eye damage, you still must install strict Class 4 light-tight safety enclosures around the cobot cell. You lose some of the flexible, open-floor benefits typically associated with collaborative units.
Traditional Industrial Arms
Traditional industrial robotic systems remain the gold standard for high-volume, high-speed manufacturing environments. They boast massive, rigid castings and powerful servo motors. They excel in applications requiring long reach, heavy lifting, and aggressive acceleration profiles.
Pros: Industrial units deliver maximum acceleration between weld seams, drastically reducing cycle times. They offer high payload capacities necessary to carry heavy, complex wobbler heads alongside dual wire feeders and heavy cooling lines.
Realities: These systems demand expert offline programming and dedicated engineering support. They occupy massive floor space. Furthermore, their high-speed rigid movements require extensive physical safety guarding, interlocked doors, and light curtains to protect floor personnel.
Architecture Comparison Summary
Use the chart below to understand the fundamental trade-offs between the two distinct architectures.
Feature / Specification | Collaborative Robots (Cobots) | Traditional Industrial Arms |
Ideal Production Type | High-mix, low-volume batches | High-volume, low-mix continuous production |
Programming Method | Intuitive drag-and-drop, hand-guiding | Complex offline programming, specialized code |
Movement Speed | Slower (limited by safety sensors) | Extremely fast acceleration and rapid transit |
Laser Safety Needs | Class 4 enclosure required (negates fence-free appeal) | Class 4 enclosure + hard physical safety fencing required |
Evaluation Criteria: Selecting the Right Hardware and Partners
Payload and Cable Management
Buyers often underestimate the payload requirements for laser applications. You cannot simply look at the static weight of the laser head. You must calculate the true dynamic payload. A wobbler head weighs more than a static head due to internal oscillating mirrors. Additionally, you must factor in the weight and tension of assist gas lines, chilled cooling tubes, heavy fiber optic cables, and optional wire feeders. When the machine accelerates, these attachments create dynamic inertia. If the wrist exceeds its specified torque limits, you will experience micro-vibrations, leading to rejected parts. Proper cable management protects delicate fiber optics from repetitive bending stress.
Controller Compatibility
Your robotic controller must communicate flawlessly with the laser power source. Assess the ease of integrating digital I/O interfaces using protocols like EtherCAT, PROFINET, or Ethernet/IP. Real-time power modulation remains crucial. As the tool center point approaches a sharp corner, the machine naturally decelerates. If the laser continues pumping full wattage into that slowing corner, it will burn through the material. A well-integrated controller automatically ramps down the laser power proportionally to the travel speed, ensuring a uniform bead regardless of trajectory changes.
The Vendor Ecosystem
Hardware specifications only solve half the equation; your vendor ecosystem determines long-term viability. You must source reliable components to prevent costly line stoppages. Protective lenses, specialized nozzles, and focusing mirrors degrade over time and require frequent replacement. This makes vetting a high-quality laser heads components supplier just as critical as choosing the robotic brand itself. You need guaranteed long-term consumable availability and strict technical compatibility. A fractured supply chain forces work cells into unplanned downtime, destroying your calculated ROI.
Implementation Realities: Navigating Rollout Risks
Hidden Integration Costs
Buyers frequently focus their budgets entirely on the primary robotic hardware, neglecting critical secondary costs. Precision fixturing demands significant investment. Unlike human operators, robots cannot adapt to poorly clamped parts. A human sees a gap and alters their torch angle; a robotic unit blindly executes its programmed path. You must invest heavily in precision toggle clamps, pneumatic fixtures, and rigid jig tables to hold parts perfectly flush. Furthermore, custom tooling and specialized Class 4 light-tight safety enclosures add substantial expenses to the final integration budget.
Process Variables and Upstream Tolerances
Part fit-up acts as the most common point of failure in automated welding cells. The success of the joining process relies heavily on upstream fabrication accuracy. If your laser cutting, punching, or press brake bending processes lack tight tolerances, parts will arrive at the welding cell with varying gaps. If a gap exceeds the laser's narrow spot size, the beam shoots straight through the void without fusing the edges. You must audit your entire fabrication chain to ensure repeatability before implementing downstream robotic automation.
Proven Mitigation Strategies
You can safeguard your rollout against process variables by adopting proven mitigation strategies. We recommend avoiding direct full-floor deployment right away. Instead, execute a phased rollout.
Offline Simulation: Use offline programming software to simulate reach studies and collision detection before pouring concrete for the cell.
Seam-Tracking Technologies: Add vision-based or tactile seam-tracking sensors. These systems scan the joint milliseconds before the arc ignites, dynamically shifting the programmed path to compensate for minor part warping or imperfect fixturing.
Pilot Testing: Run scrap material through the cell for extensive parameter tuning before committing to live production runs.
Conclusion: Shortlisting Logic and Next Steps
Decision Framework
Deploying automated laser systems requires a methodical approach. Skipping steps leads to underpowered equipment or over-engineered cells. Follow this logical sequence to shortlist your ideal solution:
Define Part Volume: Analyze your product mix. High volume dictates traditional industrial arms; high-mix dictates cobots.
Select Arm Type: Match the architecture to your floor space constraints and cycle time targets.
Audit Payload and Reach: Calculate dynamic inertia, including all cables, hoses, and optical heads. Map the required 3D workspace.
Select Compatible Components: Finalize controller protocols and secure reliable vendors for your core laser delivery components.
Actionable Next Steps
Never rely solely on polished vendor showroom demonstrations. Showroom parts feature perfect tolerances and optimal clamping. Real-world manufacturing environments feature dust, slight part deviations, and varying ambient temperatures. Encourage your integration team to schedule a proof-of-concept (PoC) test using your actual production parts. Provide the vendor with your toughest assemblies and worst-case fit-up scenarios. Analyzing how the robotic system handles your specific application challenges will guarantee a successful and profitable deployment.
FAQ
Q: What is the minimum payload required for a robot arm in laser welding?
A: The minimum payload typically starts at 5kg to 10kg, but it varies drastically based on the head type. Standard static heads are lighter. Wobbler heads feature internal oscillating motors, adding significant weight. You must also calculate the dynamic inertia introduced by heavy fiber optic cables, assist gas hoses, and water cooling lines moving at high speeds.
Q: Can a cobot operate without a safety enclosure when laser welding?
A: No. While cobots themselves feature force-limiting sensors for physical safety, laser welding involves intense Class 4 radiation. This radiation causes immediate, permanent eye damage. Compliance regulations require you to install a fully light-tight enclosure around the cobot to block scattered laser beams and intense visible light.
Q: How does part tolerance affect robotic laser welding?
A: Laser welding utilizes an extremely narrow beam. If upstream cutting or bending processes yield poor part tolerances, gaps appear in the joint. The robot will blindly follow its program, causing the narrow beam to pass directly through the gap without joining the metal. You must improve upstream precision or invest in costly vision-tracking systems.
