Why Choose the HD30?

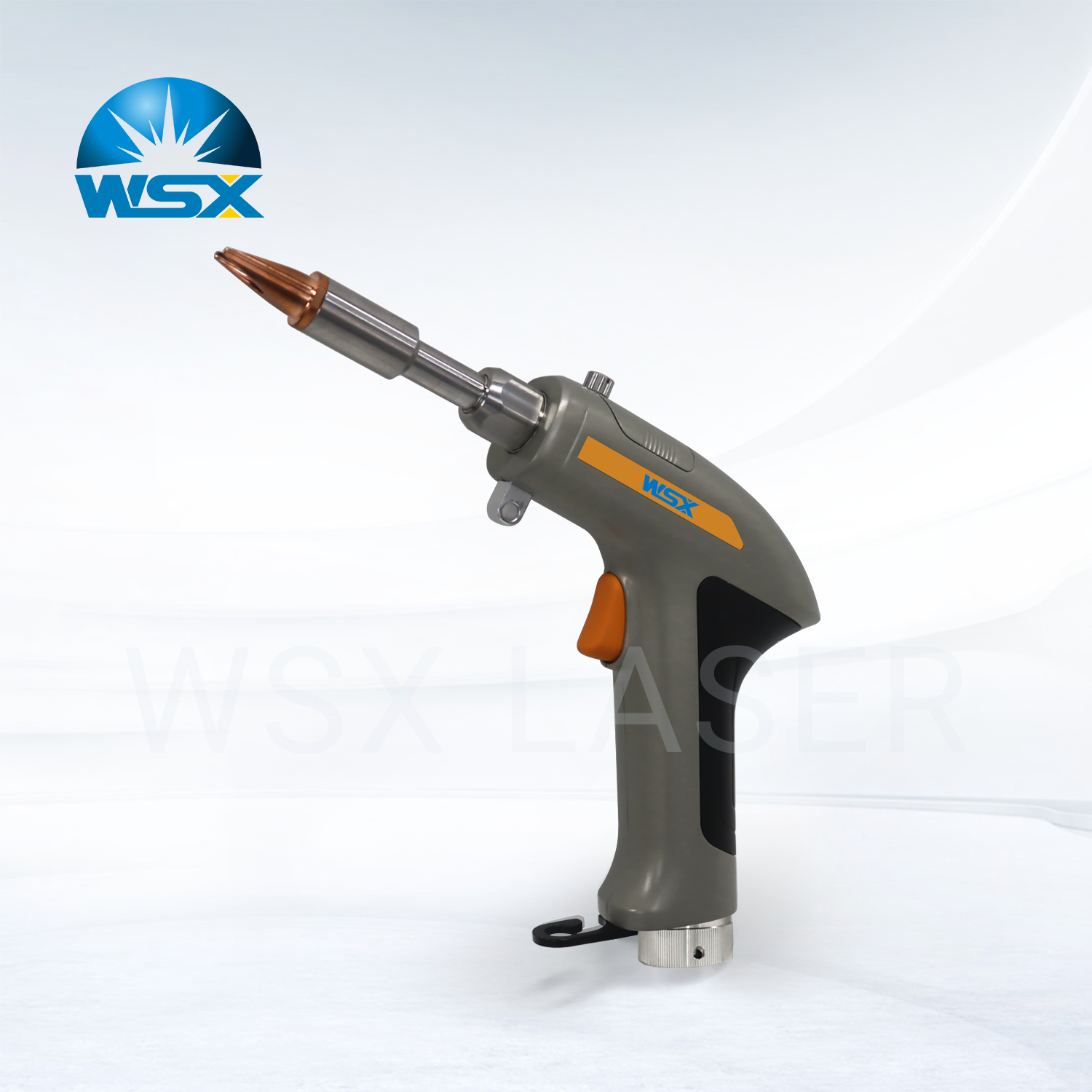

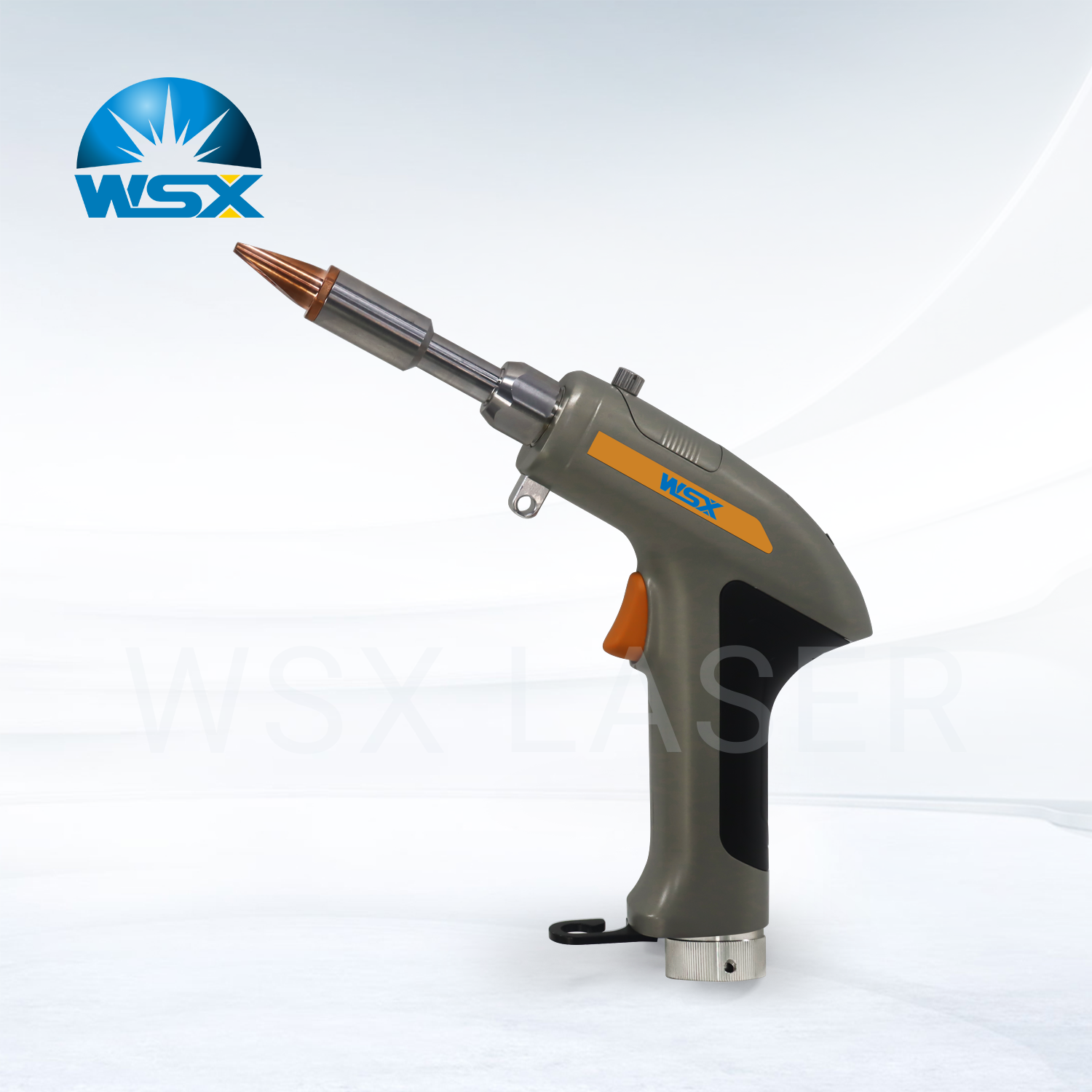

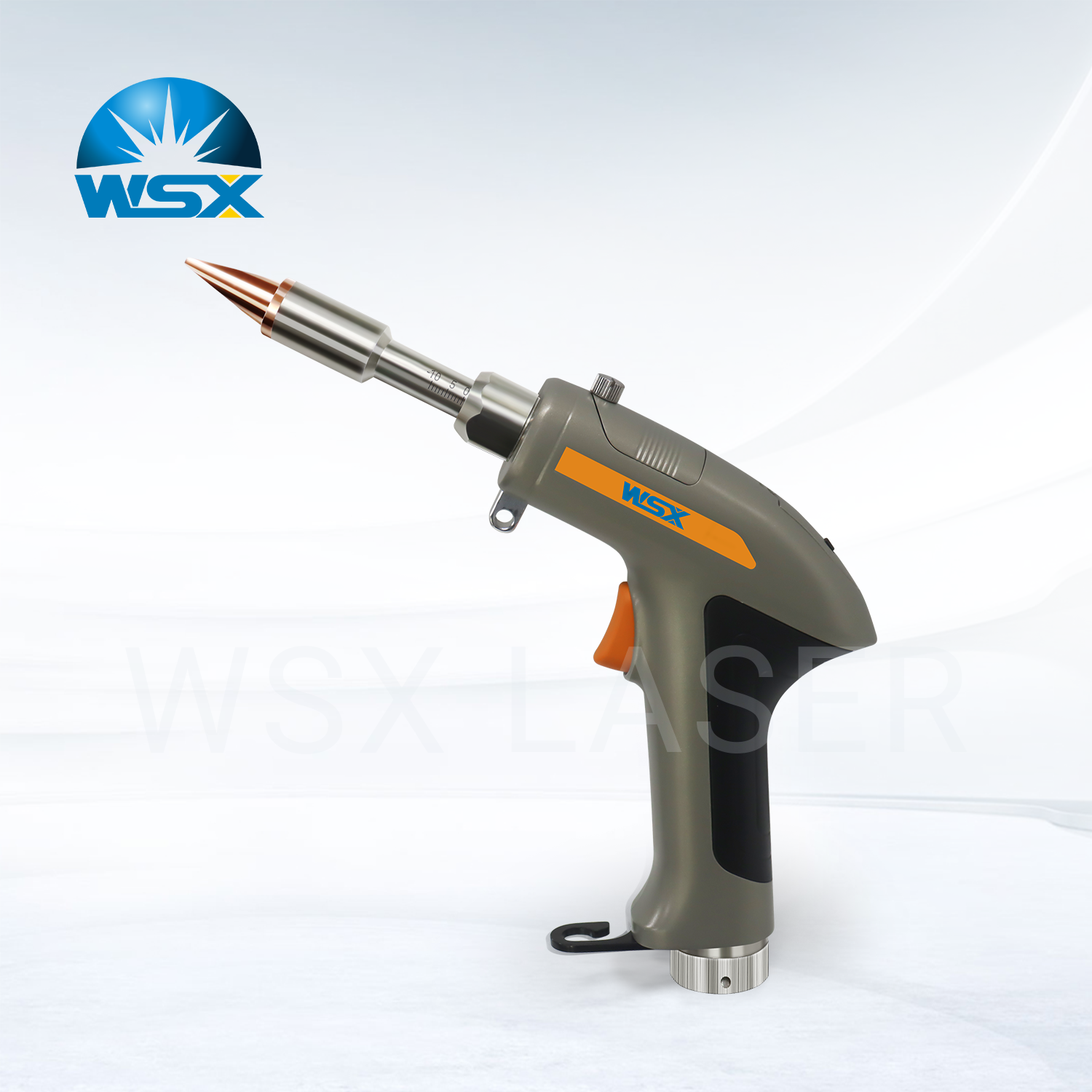

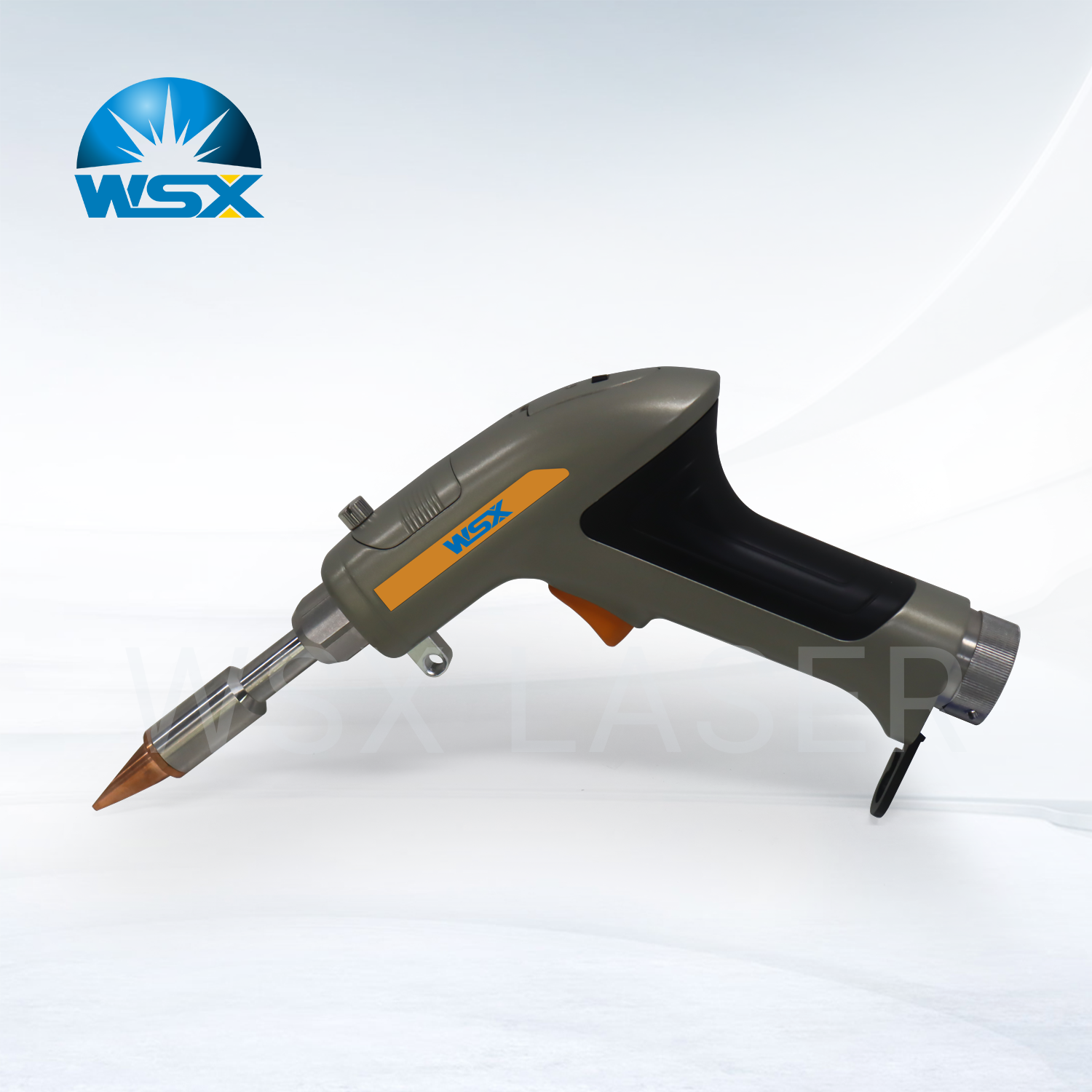

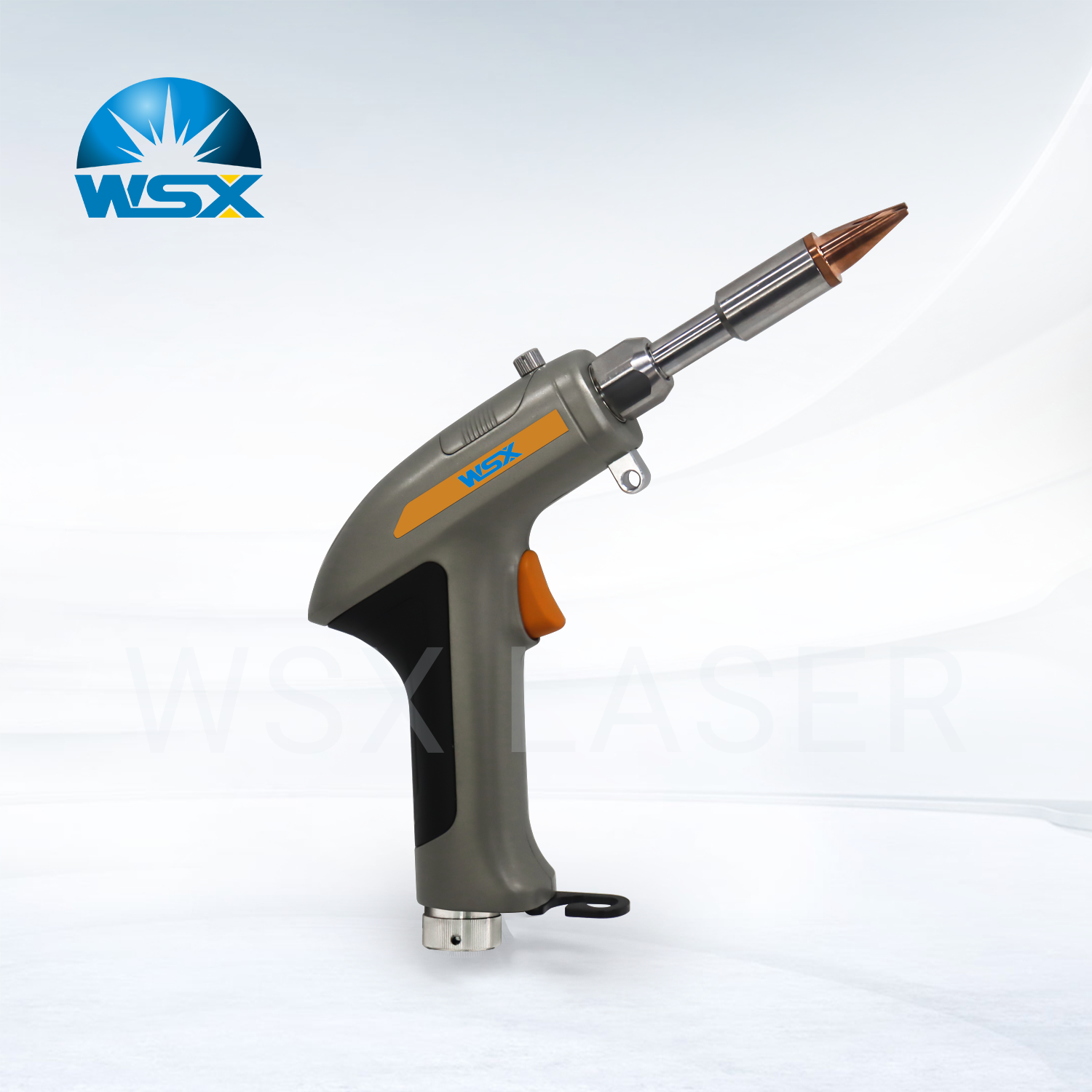

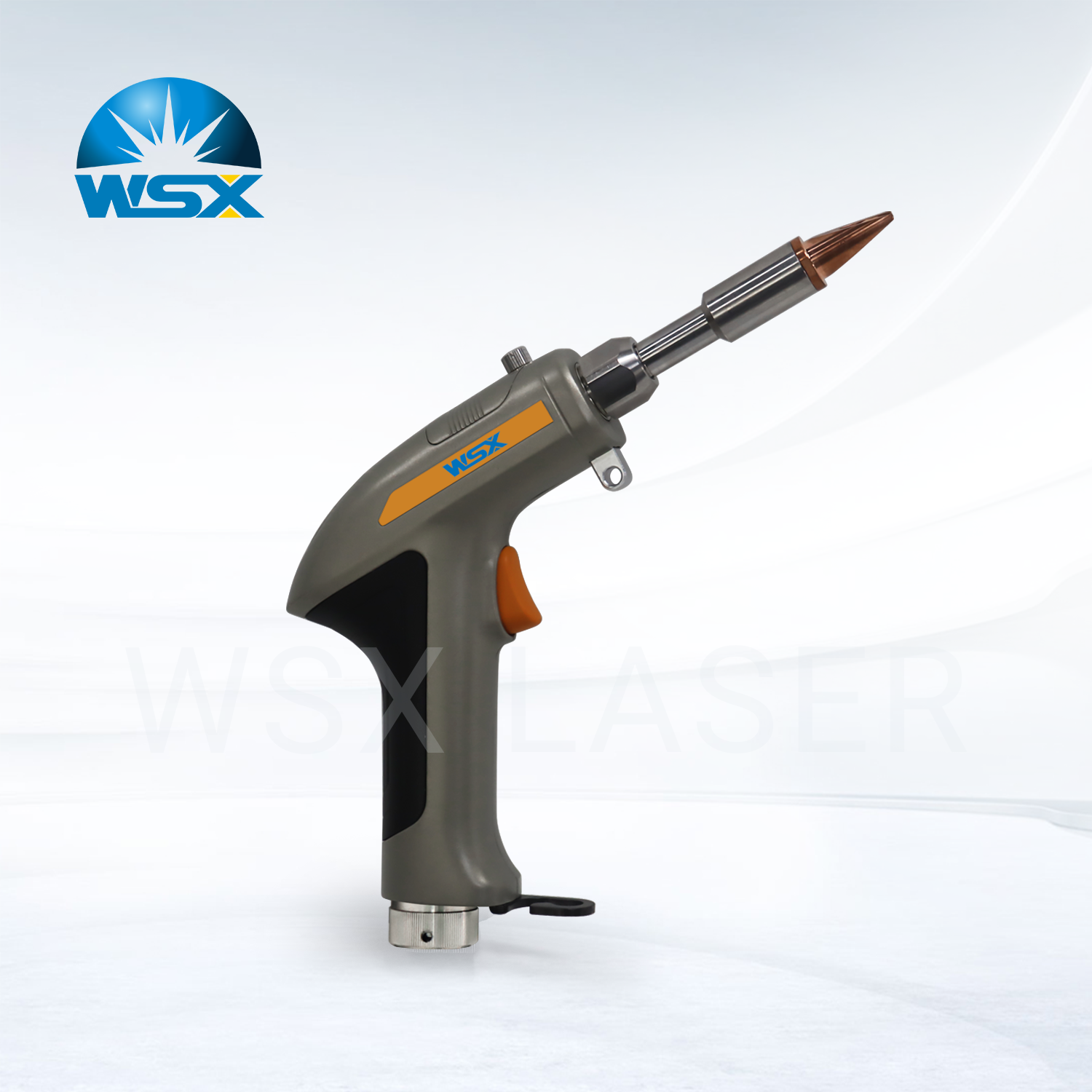

The HD30 high - performance water - cooled handheld laser welder is a game - changer in the welding industry, offering a comprehensive set of features that make it an unrivaled choice for professionals.
Lightweight and Portable Design: The HD30 is ingeniously designed with a plastic outer casing, resulting in a remarkably lightweight and portable device. This not only simplifies transportation across different work areas but also enhances its sturdiness and ability to withstand impacts. Whether you’re on a large - scale production floor or a remote job site, the HD30 can be easily maneuvered to meet your welding requirements.
Intelligent Safety System: Safety is at the core of the HD30’s design. It comes equipped with an advanced safety monitoring system that constantly keeps tabs on crucial operating parameters such as temperature, power supply, motor status, and laser output. Real - time monitoring ensures that the welder operates within safe boundaries, safeguarding the user and the equipment from potential risks.
Optimized Optical Structure: The optical system of the HD30 has been meticulously optimized for outstanding performance. Upgraded lens materials and coatings not only extend the lifespan of the optical components but also lead to a significant improvement in welding strength. This enables high - precision welding, making the HD30 suitable for a wide spectrum of applications, from fine - detail work to heavy - duty industrial projects.
User - Friendly UI Interface: The HD30 features an intuitive and straightforward UI interface, designed to streamline the operation process. With simple clicks, users can effortlessly switch between various functions like continuous welding, spot welding, cleaning, and cutting. This ease of use not only enhances work efficiency but also makes the HD30 accessible to both seasoned welders and novices, whether in a production line environment or for emergency repair work.
Technical Specifications
| Parameter Name | Parameter Details |
| Interface Type | QBH |
| Laser Incident Mode | Coaxial |
| Laser Power | ≤3KW |
| Laser Wavelength Range | 1070±20nm |
| Collimating Focal Length | 60mm |
| Focusing Focal Length | 150mm |
| Adjustable Amplitude | 0 - 6mm |
| Shielding Gas | Nitrogen |
| Weight | 0.52kg |
